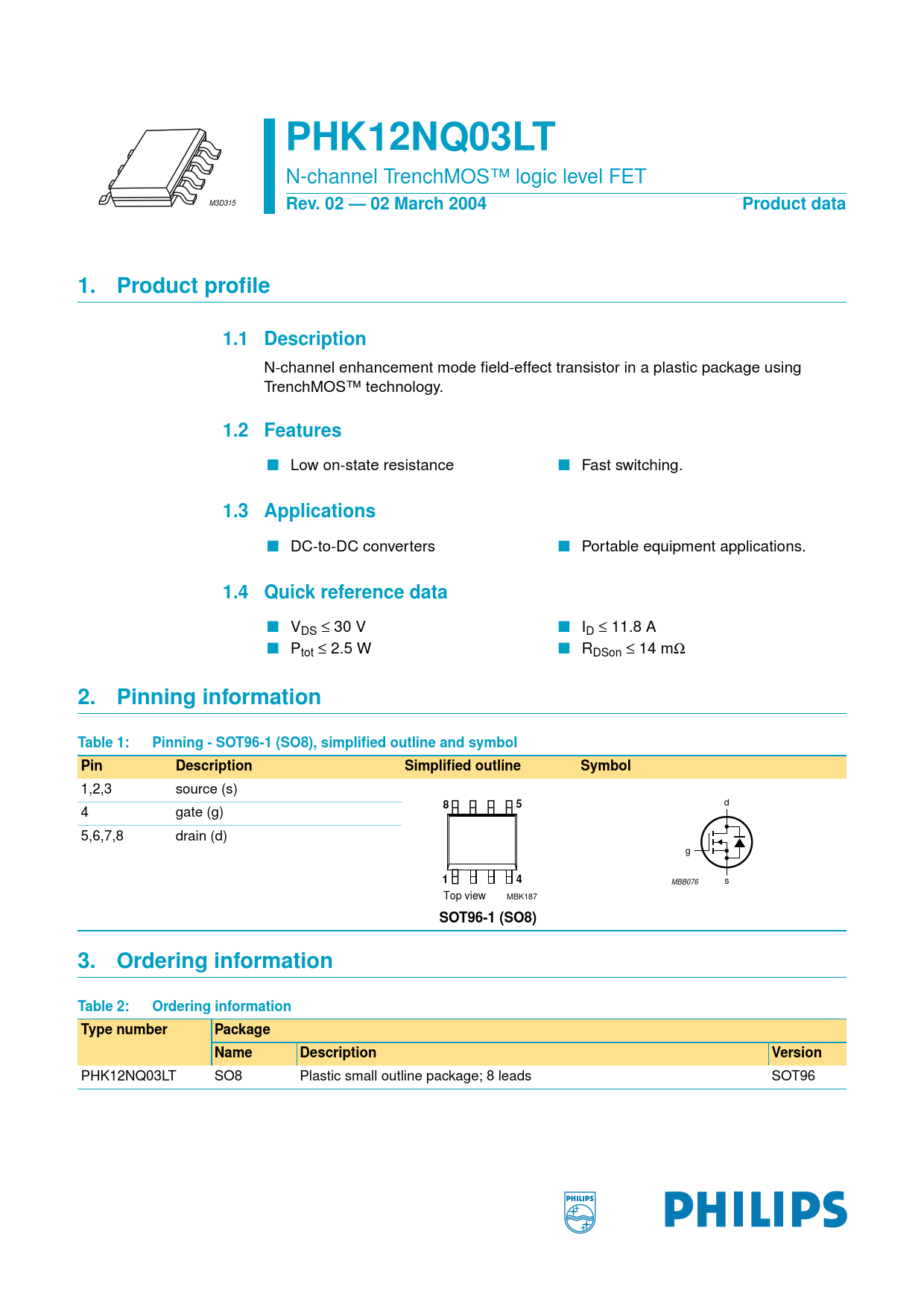

PHK12NQ03LT
N-channel TrenchMOS™ logic level FET M3D315
Rev. 02 — 02 March 2004 Product data 1. Product profile 1.1 Description
N-channel enhancement mode field-effect transistor in a plastic package using TrenchMOS™ technology.
1.2 Features
■ Low on-state resistance ■ Fast switching.
1.3 Applications
■ DC-to-DC converters ■ Portable equipment applications.
1.4 Quick reference data
■ VDS ≤ 30 V ■ ID ≤ 11.8 A ■ Ptot ≤ 2.5 W ■ RDSon ≤ 14 mΩ
2. Pinning information Table 1: Pinning - SOT96-1 (SO8), simplified outline and symbol Pin Description Simplified outline Symbol
1,2,3 source (s)
8 5
d 4 gate (g) 5,6,7,8 drain (d) g
1 4
MBB076 s Top view MBK187
SOT96-1 (SO8) 3. Ordering information Table 2: Ordering information Type number Package Name Description Version
PHK12NQ03LT SO8 Plastic small outline package; 8 leads SOT96 Document Outline 1. Product profile 1.1 Description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Limiting values 5. Thermal characteristics 5.1 Transient thermal impedance 6. Characteristics 7. Package outline 8. Revision history 9. Data sheet status 10. Definitions 11. Disclaimers 12. Trademarks
