Datasheet PMEG120G30ELP (Nexperia) - 8
| 制造商 | Nexperia |
| 描述 | 120 V, 3 A Silicon Germanium (SiGe) rectifier |
| 页数 / 页 | 14 / 8 — Nexperia. PMEG120G30ELP. 120 V, 3 A Silicon Germanium (SiGe) rectifier. … |
| 修订版 | 26052020 |
| 文件格式/大小 | PDF / 252 Kb |
| 文件语言 | 英语 |
Nexperia. PMEG120G30ELP. 120 V, 3 A Silicon Germanium (SiGe) rectifier. 11. Test information
该数据表的模型线
文件文字版本

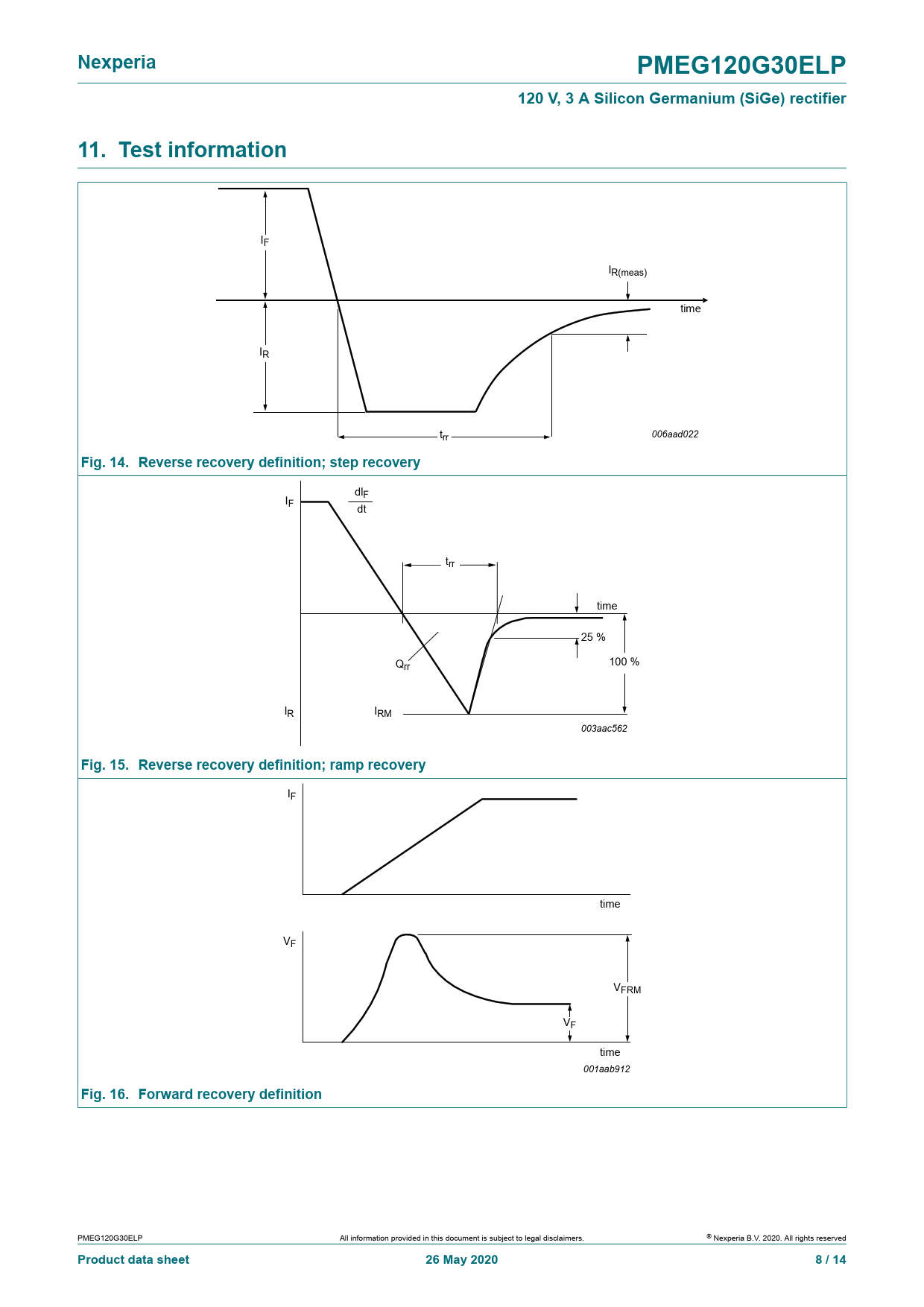

Nexperia PMEG120G30ELP 120 V, 3 A Silicon Germanium (SiGe) rectifier 11. Test information
IF IR(meas) time IR trr 006aad022
Fig. 14. Reverse recovery definition; step recovery
dl I F F dt trr time 25 % Q 100 % rr IR IRM 003aac562
Fig. 15. Reverse recovery definition; ramp recovery
IF time VF VFRM VF time 001aab912
Fig. 16. Forward recovery definition
PMEG120G30ELP All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 26 May 2020 8 / 14
