Datasheet PMEG120G30ELP (Nexperia) - 10
| 制造商 | Nexperia |
| 描述 | 120 V, 3 A Silicon Germanium (SiGe) rectifier |
| 页数 / 页 | 14 / 10 — Nexperia. PMEG120G30ELP. 120 V, 3 A Silicon Germanium (SiGe) rectifier. … |
| 修订版 | 26052020 |
| 文件格式/大小 | PDF / 252 Kb |
| 文件语言 | 英语 |
Nexperia. PMEG120G30ELP. 120 V, 3 A Silicon Germanium (SiGe) rectifier. 13. Soldering
该数据表的模型线
文件文字版本
Nexperia PMEG120G30ELP 120 V, 3 A Silicon Germanium (SiGe) rectifier 13. Soldering
6.2 4.4 4.2 solder lands solder resist 3.4 2.5 1.9 2.1 (2×) (2×) solder paste occupied area Dimensions in mm 1.2 (2×) 1.4 (2×) sod128_fr

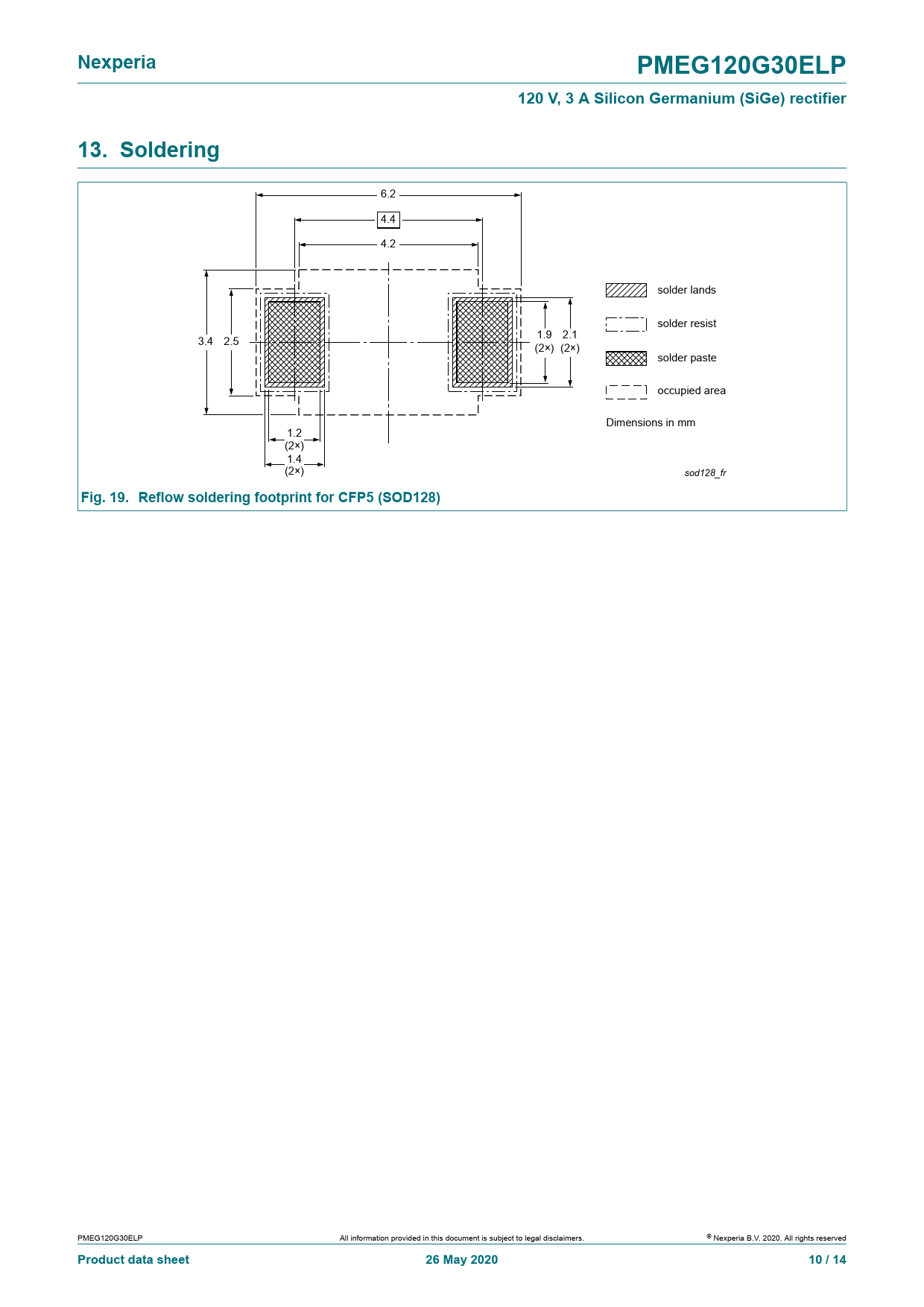

Fig. 19. Reflow soldering footprint for CFP5 (SOD128)
