Datasheet PMEG120G30ELP (Nexperia) - 9
| 制造商 | Nexperia |
| 描述 | 120 V, 3 A Silicon Germanium (SiGe) rectifier |
| 页数 / 页 | 14 / 9 — Nexperia. PMEG120G30ELP. 120 V, 3 A Silicon Germanium (SiGe) rectifier. … |
| 修订版 | 26052020 |
| 文件格式/大小 | PDF / 252 Kb |
| 文件语言 | 英语 |

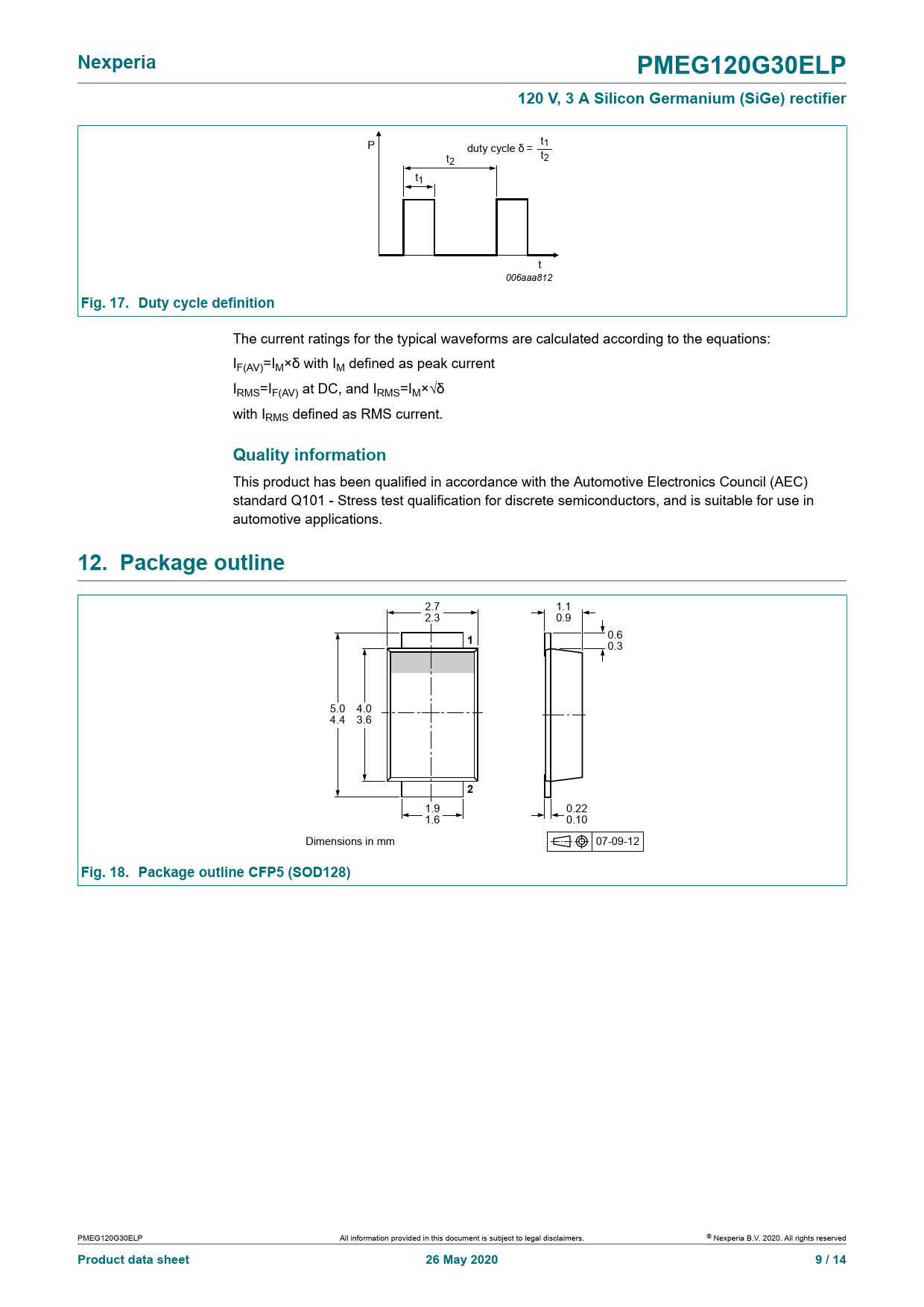

Nexperia. PMEG120G30ELP. 120 V, 3 A Silicon Germanium (SiGe) rectifier. Fig. 17. Duty cycle definition. Quality information
该数据表的模型线
文件文字版本
Nexperia PMEG120G30ELP 120 V, 3 A Silicon Germanium (SiGe) rectifier
t1 P duty cycle δ = t t 2 2 t1 t 006aaa812
Fig. 17. Duty cycle definition
The current ratings for the typical waveforms are calculated according to the equations: IF(AV)=IM×δ with IM defined as peak current IRMS=IF(AV) at DC, and IRMS=IM×√δ with IRMS defined as RMS current.
Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications.
12. Package outline
2.7 1.1 2.3 0.9 0.6
1
0.3 5.0 4.0 4.4 3.6
2
1.9 0.22 1.6 0.10 Dimensions in mm 07-09-12
Fig. 18. Package outline CFP5 (SOD128)
PMEG120G30ELP All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 26 May 2020 9 / 14
