Datasheet ZXTP56060FDBQ (Diodes) - 7

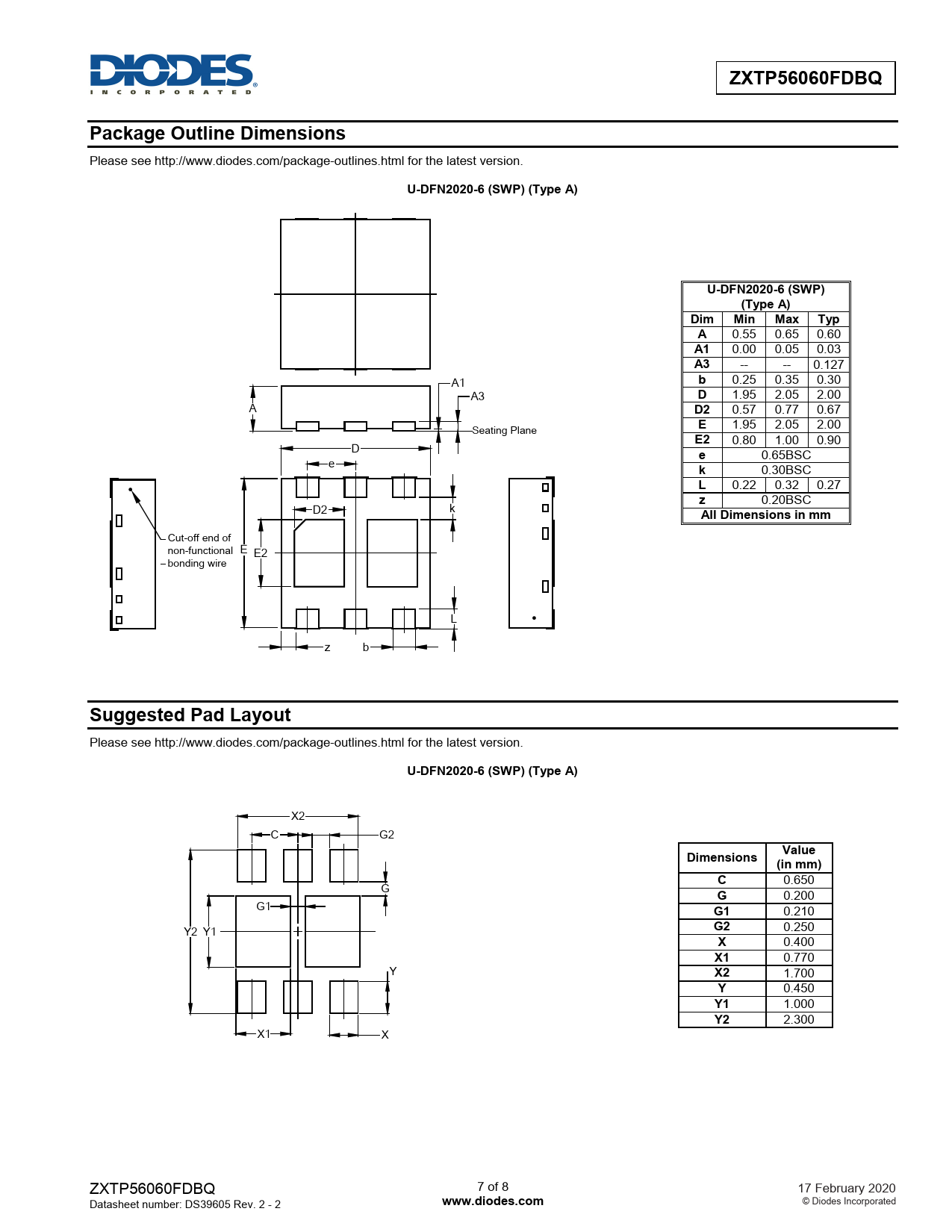

ZXTP56060FDBQ Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
U-DFN2020-6 (SWP) (Type A) U-DFN2020-6 (SWP) (Type A) Dim Min Max Typ A
0.55 0.65 0.60
A1
0.00 0.05 0.03
A3
-- -- 0.127 A1
b
0.25 0.35 0.30 A3
D
1.95 2.05 2.00 A
D2
0.57 0.77 0.67 Seating Plane
E
1.95 2.05 2.00
E2
0.80 1.00 0.90 D
e
0.65BSC e
k
0.30BSC
L
0.22 0.32 0.27
z
0.20BSC D2 k
All Dimensions in mm
Cut-off end of non-functional E E2 bonding wire L z b
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
U-DFN2020-6 (SWP) (Type A)
X2 C G2
Dimensions Value (in mm) C
0.650 G
G
0.200 G1
G1
0.210 Y2 Y1
G2
0.250
X
0.400
X1
0.770 Y
X2
1.700
Y
0.450
Y1
1.000
Y2
2.300 X1 X ZXTP56060FDBQ 7 of 8 17 February 2020 Datasheet number: DS39605 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated Document Outline Mechanical Data Description This bipolar junction transistors (BJT) is designed to meet the stringent requirements of automotive applications. Features BVCEO > -60V Application Matrix LED Lighting Power Management Characteristic Characteristic Marking Information 2D9 YWX 2D9 = Product Type Marking Code Y = Year: 0~9 W = Week: A~Z: 1~26 week; a~z: 27~52 week; z represents 52 and 53 week X = A~Z: Internal code Package Outline Dimensions Suggested Pad Layout
