Datasheet ADCMP603 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Rail-to-Rail, Very Fast, 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator |
| 页数 / 页 | 16 / 6 — ADCMP603. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 321 Kb |
| 文件语言 | 英语 |

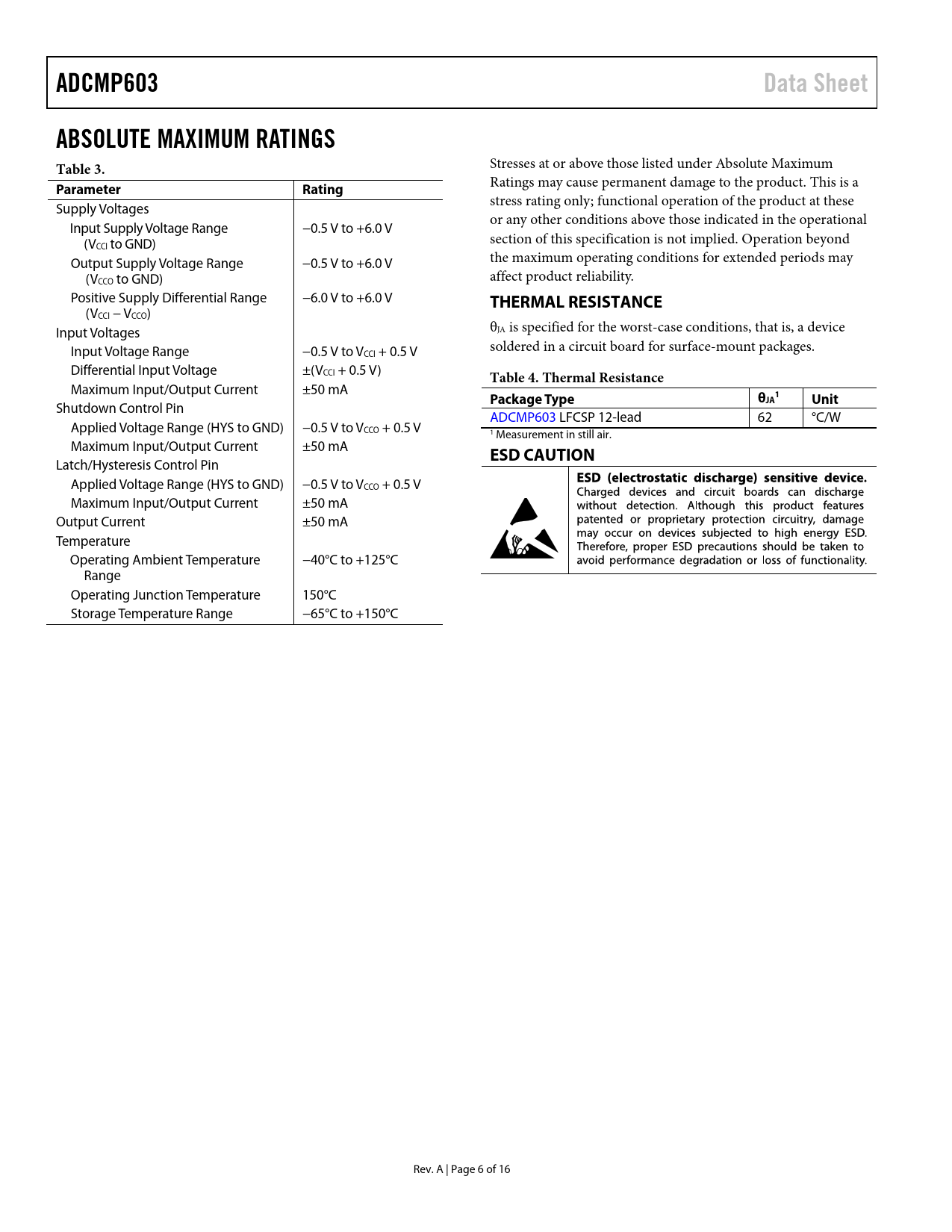

ADCMP603. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. THERMAL RESISTANCE. Table 4. Thermal Resistance
该数据表的模型线
文件文字版本
ADCMP603 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltages or any other conditions above those indicated in the operational Input Supply Voltage Range −0.5 V to +6.0 V (V section of this specification is not implied. Operation beyond CCI to GND) Output Supply Voltage Range −0.5 V to +6.0 V the maximum operating conditions for extended periods may (V affect product reliability. CCO to GND) Positive Supply Differential Range −6.0 V to +6.0 V
THERMAL RESISTANCE
(VCCI − VCCO) Input Voltages θJA is specified for the worst-case conditions, that is, a device Input Voltage Range −0.5 V to V soldered in a circuit board for surface-mount packages. CCI + 0.5 V Differential Input Voltage ±(VCCI + 0.5 V)
Table 4. Thermal Resistance
Maximum Input/Output Current ±50 mA
Package Type θ 1 JA Unit
Shutdown Control Pin ADCMP603 LFCSP 12-lead 62 °C/W Applied Voltage Range (HYS to GND) −0.5 V to VCCO + 0.5 V 1 Measurement in still air. Maximum Input/Output Current ±50 mA
ESD CAUTION
Latch/Hysteresis Control Pin Applied Voltage Range (HYS to GND) −0.5 V to V CCO + 0.5 V Maximum Input/Output Current ±50 mA Output Current ±50 mA Temperature Operating Ambient Temperature −40°C to +125°C Range Operating Junction Temperature 150°C Storage Temperature Range −65°C to +150°C Rev. A | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS TIMING INFORMATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION POWER/GROUND LAYOUT AND BYPASSING TTL-/CMOS-COMPATIBLE OUTPUT STAGE USING/DISABLING THE LATCH FEATURE OPTIMIZING PERFORMANCE COMPARATOR PROPAGATION DELAY DISPERSION COMPARATOR HYSTERESIS CROSSOVER BIAS POINT MINIMUM INPUT SLEW RATE REQUIREMENT TYPICAL APPLICATION CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
