Datasheet BPX 43 (OSRAM) - 4
| 制造商 | OSRAM |
| 描述 | Silicon NPN Phototransistor |
| 页数 / 页 | 14 / 4 — link. to. page. 13. link. to. page. 13. BPX. 43. Grouping. T. =. 25. °C. … |
| 文件格式/大小 | PDF / 796 Kb |
| 文件语言 | 英语 |
link. to. page. 13. link. to. page. 13. BPX. 43. Grouping. T. =. 25. °C. A. Group. Photocurrent. Photocurrent. V. =. 5. V;. λ. =. 950. nm;. E. =. 0.5. mW/cm². V. =. 5. V;. λ. =. 950. nm;. E. =. 0.5
该数据表的模型线
文件文字版本

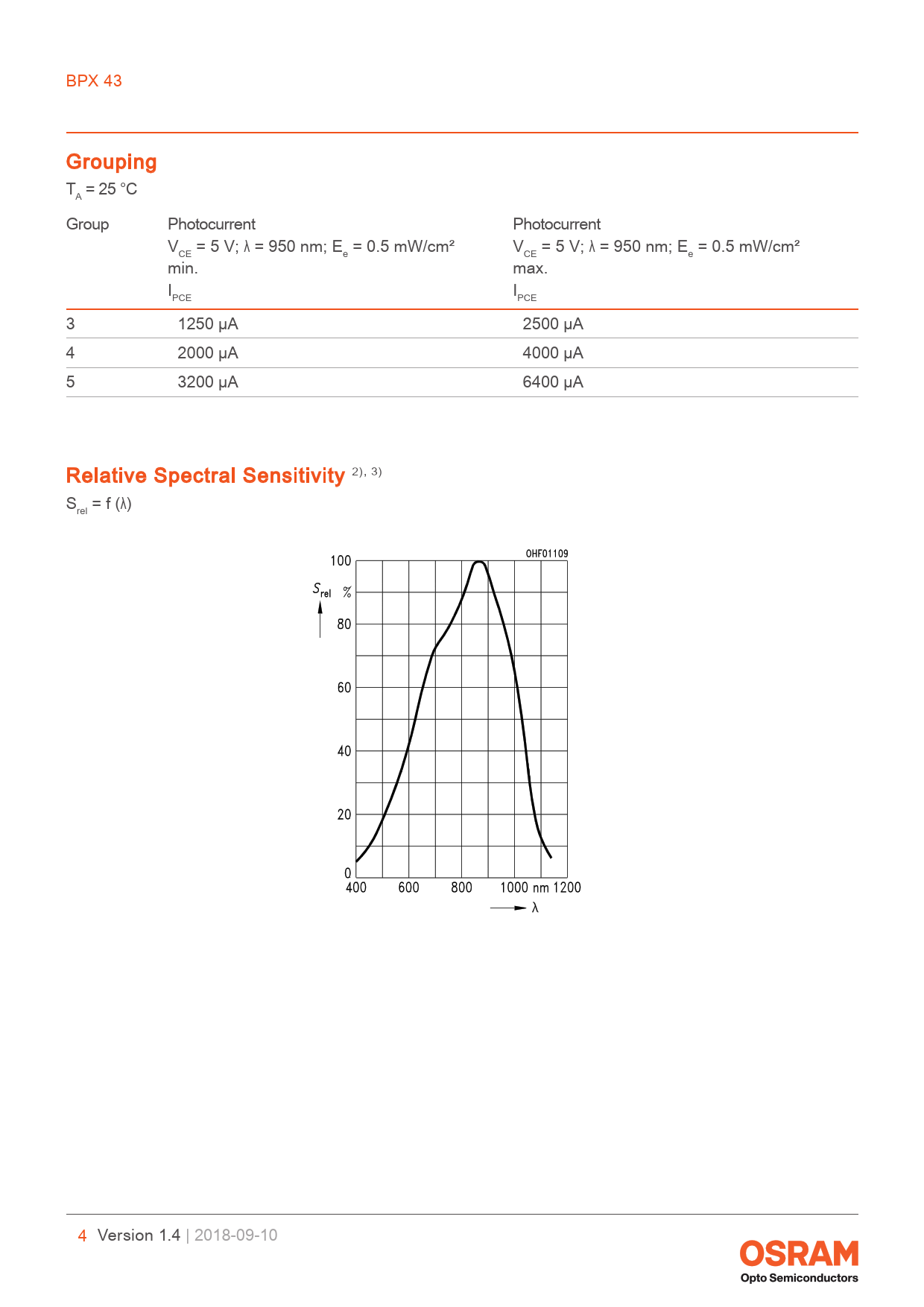

link to page 13 link to page 13 BPX 43 Grouping T = 25 °C A Group Photocurrent Photocurrent V = 5 V; λ = 950 nm; E = 0.5 mW/cm² V = 5 V; λ = 950 nm; E = 0.5 mW/cm² CE e CE e min. max. I I PCE PCE 3 1250 µA 2500 µA 4 2000 µA 4000 µA 5 3200 µA 6400 µA Relative Spectral Sensitivity 2), 3) S = f (λ) rel 4 Version 1.4 | 2018-09-10
