Datasheet IRG4PH40UD2-EP (Infineon) - 9
| 制造商 | Infineon |
| 描述 | Insulated Gate Bipolar Transistor with Ultrafast Soft Recovery Diode. UltraFast CoPack IGBT |
| 页数 / 页 | 11 / 9 — D.U.T. RL=. 800V. 4 X IC @25°C. 0 - 800V |
| 修订版 | 01_00 |
| 文件格式/大小 | PDF / 242 Kb |
| 文件语言 | 英语 |
D.U.T. RL=. 800V. 4 X IC @25°C. 0 - 800V
该数据表的模型线
文件文字版本

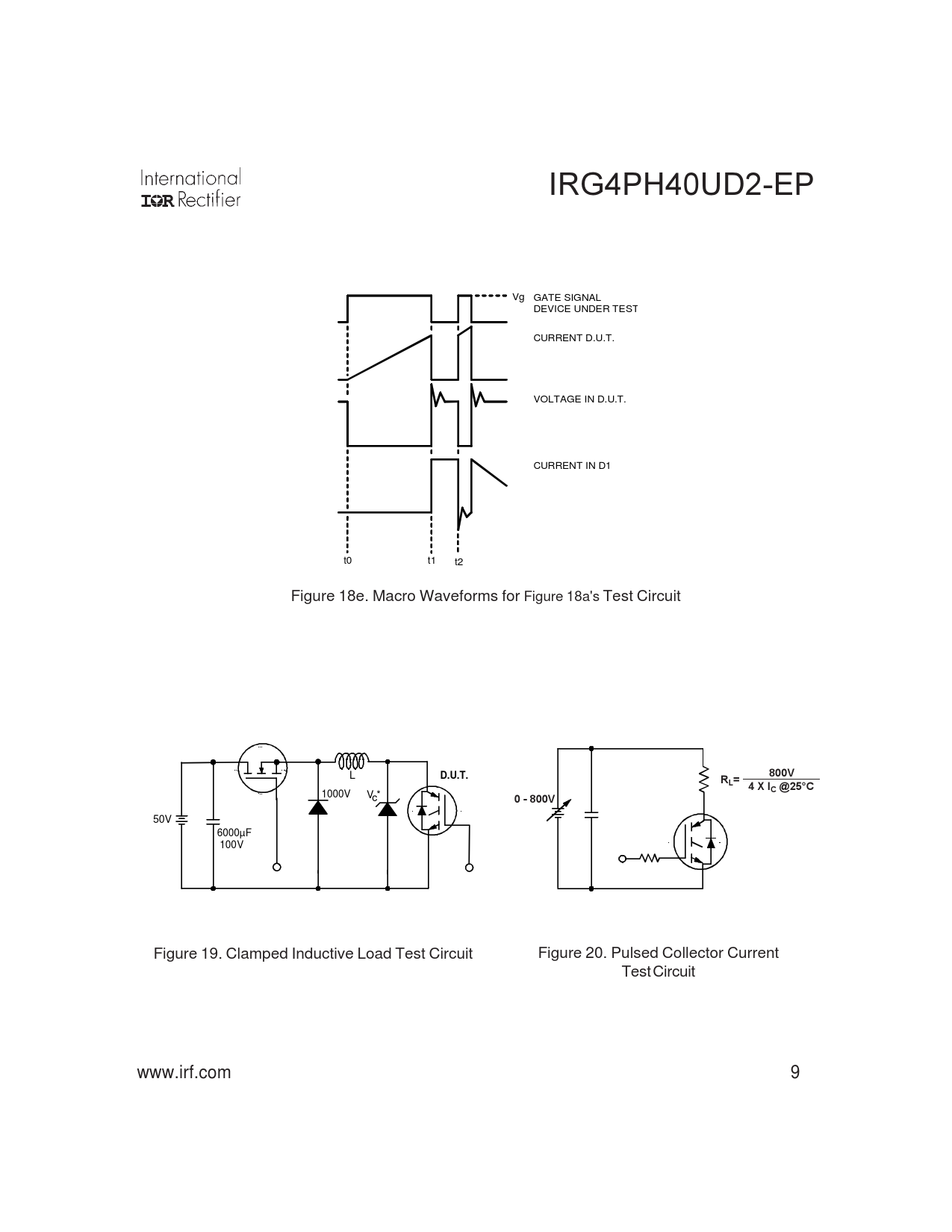

IRG4PH40UD2-EP Vg GATE SIGNAL DEVICE UNDER TEST CURRENT D.U.T. VOLTAGE IN D.U.T. CURRENT IN D1 t0 t1 t2 Figure 18e. Macro Waveforms for Figure 18a's Test Circuit L
D.U.T. RL= 800V 4 X IC @25°C
1000V V * c
0 - 800V
50V 6000µF 100V Figure 19. Clamped Inductive Load Test Circuit Figure 20. Pulsed Collector Current Test Circuit www.irf.com 9
