Datasheet IRG4PH40UD2-EP (Infineon) - 10

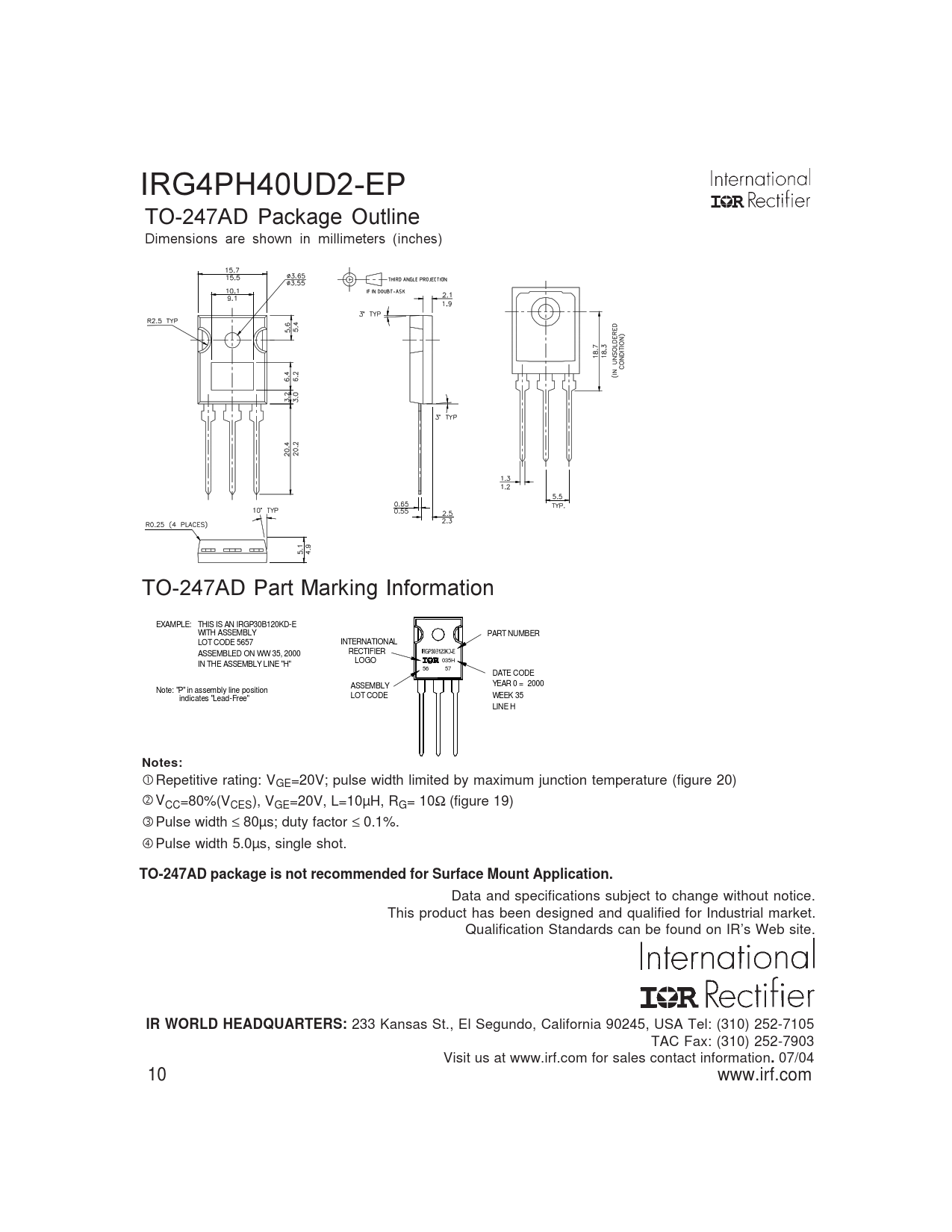

IRG4PH40UD2-EP TO-247AD Package Outline Dimensions are shown in millimeters (inches) TO-247AD Part Marking Information EXAMPLE: T HIS IS AN IRGP30B120KD-E WIT H ASS EMBLY PART NUMB ER LOT CODE 5657 INT ERNAT IONAL AS SE MB LE D ON WW 35, 2000 RECT IF IER LOGO 035H IN T HE AS SE MBLY LINE "H" 56 57 DAT E CODE ASS EMBLY YE AR 0 = 2000 Note: "P" in as s embly line pos ition LOT CODE WE EK 35 indicates "Lead-Free" LINE H
Notes:
Repetitive rating: VGE=20V; pulse width limited by maximum junction temperature (figure 20) ‚VCC=80%(VCES), VGE=20V, L=10µH, RG= 10Ω (figure 19) ƒPulse width ≤ 80µs; duty factor ≤ 0.1%. „Pulse width 5.0µs, single shot.
TO-247AD package is not recommended for Surface Mount Application.
Data and specifications subject to change without notice. This product has been designed and qualified for Industrial market. Qualification Standards can be found on IR’s Web site.
IR WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information
.
07/04 10 www.irf.com
