Datasheet HMC659 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | GaAs PHEMT MMIC POWER AMPLIFIER, DC - 15 GHz |
| 页数 / 页 | 8 / 7 — HMC659. GaAs PHEMT MMIC. POWER AMPLIFIER, DC - 15 GHz. Assembly Diagram. … |
| 文件格式/大小 | PDF / 614 Kb |
| 文件语言 | 英语 |

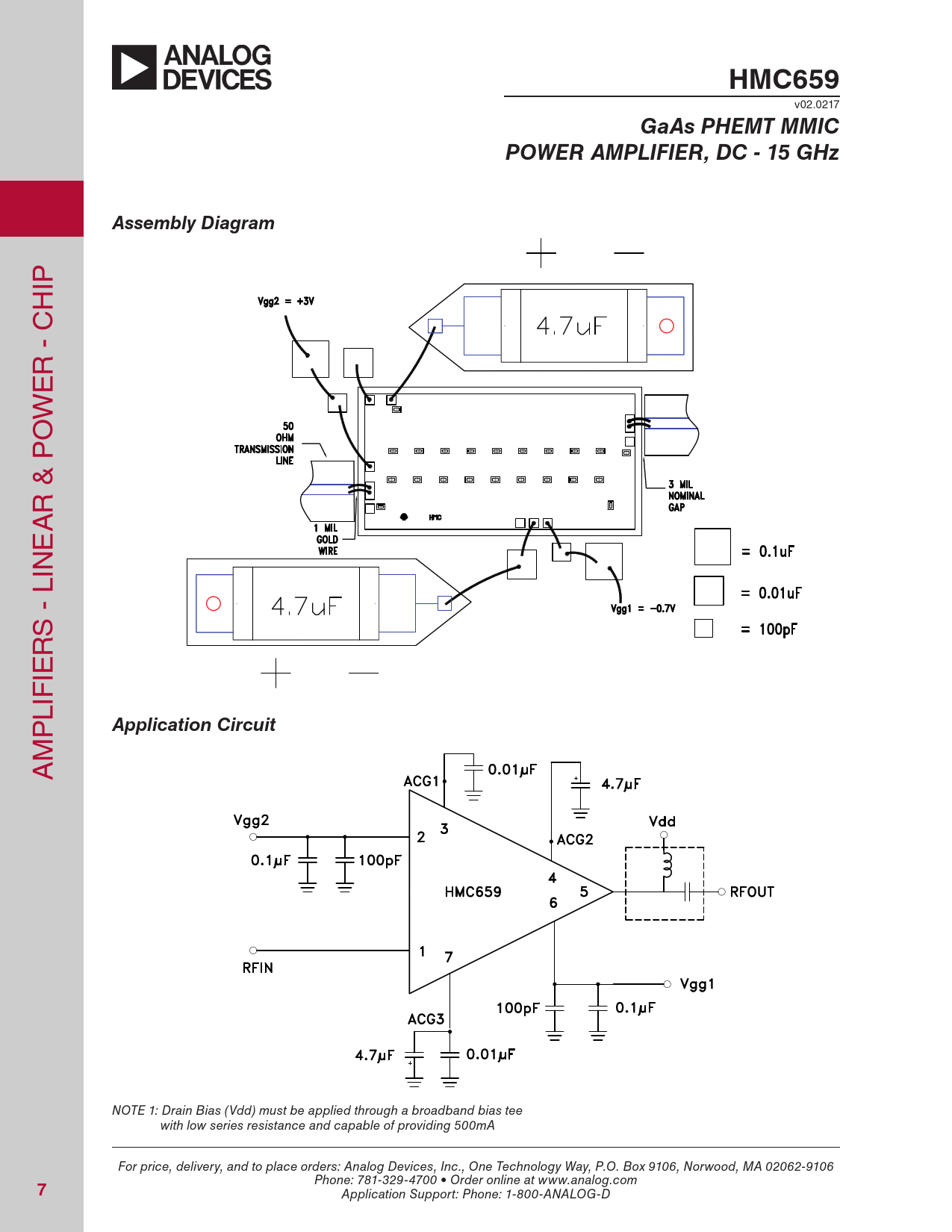

HMC659. GaAs PHEMT MMIC. POWER AMPLIFIER, DC - 15 GHz. Assembly Diagram. Application Circuit
该数据表的模型线
文件文字版本
HMC659
v02.0217
GaAs PHEMT MMIC POWER AMPLIFIER, DC - 15 GHz Assembly Diagram
IP H R - C E W O R & P A E IN S - L R IE LIF P
Application Circuit
M A NOTE 1: Drain Bias (Vdd) must be applied through a broadband bias tee with low series resistance and capable of providing 500mA For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
7
Application Support: Phone: 1-800-ANALOG-D
v02.0217
GaAs PHEMT MMIC POWER AMPLIFIER, DC - 15 GHz Assembly Diagram
IP H R - C E W O R & P A E IN S - L R IE LIF P
Application Circuit
M A NOTE 1: Drain Bias (Vdd) must be applied through a broadband bias tee with low series resistance and capable of providing 500mA For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
7
Application Support: Phone: 1-800-ANALOG-D
