Datasheet TSV7721, TSV7722, TSV7723 (STMicroelectronics) - 2
| 制造商 | STMicroelectronics |
| 描述 | High bandwidth (22 MHz) low offset (200 μV) 5 V op amp |
| 页数 / 页 | 33 / 2 — TSV7721, TSV7722, TSV7723. Pin connections. Figure 1. TSV7721 single … |
| 文件格式/大小 | PDF / 4.5 Mb |
| 文件语言 | 英语 |
TSV7721, TSV7722, TSV7723. Pin connections. Figure 1. TSV7721 single operational amplifier
该数据表的模型线
文件文字版本

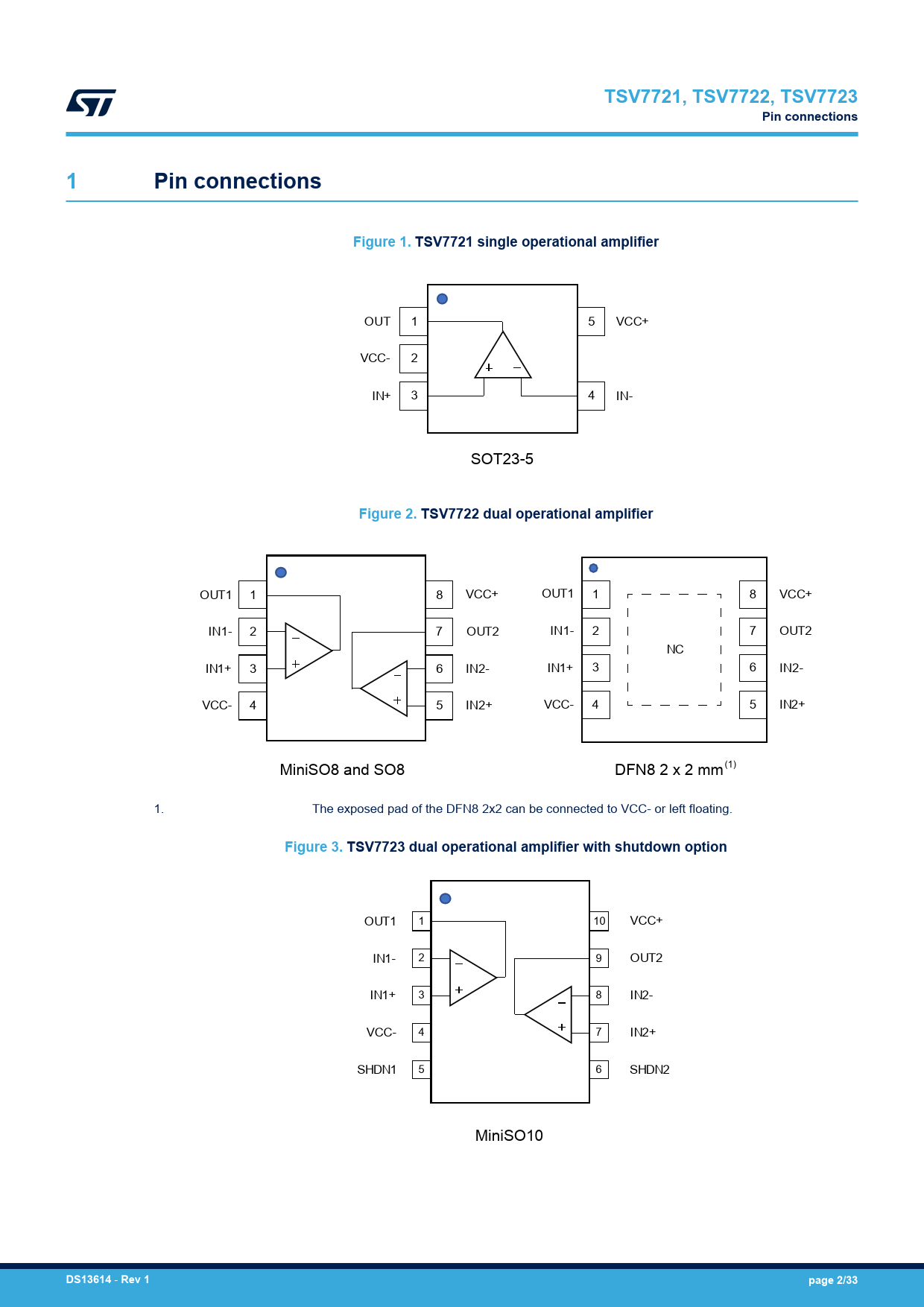

TSV7721, TSV7722, TSV7723 Pin connections 1 Pin connections Figure 1. TSV7721 single operational amplifier
OUT 1 5 VCC+ VCC- 2 IN+ 3 4 IN- SOT23-5
Figure 2. TSV7722 dual operational amplifier
OUT1 1 8 VCC+ OUT1 1 8 VCC+ IN1- 2 7 OUT2 IN1- 2 7 OUT2 NC IN1+ 3 6 IN2- IN1+ 3 6 IN2- VCC- 4 5 IN2+ VCC- 4 5 IN2+ MiniSO8 and SO8 DFN8 2 x 2 mm(1) 1. The exposed pad of the DFN8 2x2 can be connected to VCC- or left floating.
Figure 3. TSV7723 dual operational amplifier with shutdown option
OUT1 1 10 VCC+ IN1- 2 9 OUT2 IN1+ 3 8 IN2- VCC- 4 7 IN2+ SHDN1 5 6 SHDN2 MiniSO10
DS13614
-
Rev 1 page 2/33
