Datasheet C2M0045170P (Wolfspeed) - 8
| 制造商 | Wolfspeed |
| 描述 | Silicon Carbide Power MOSFET 1700 V 72 A 45 mΩ |
| 页数 / 页 | 10 / 8 — Test Circuit Schematic |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
Test Circuit Schematic
该数据表的模型线
文件文字版本

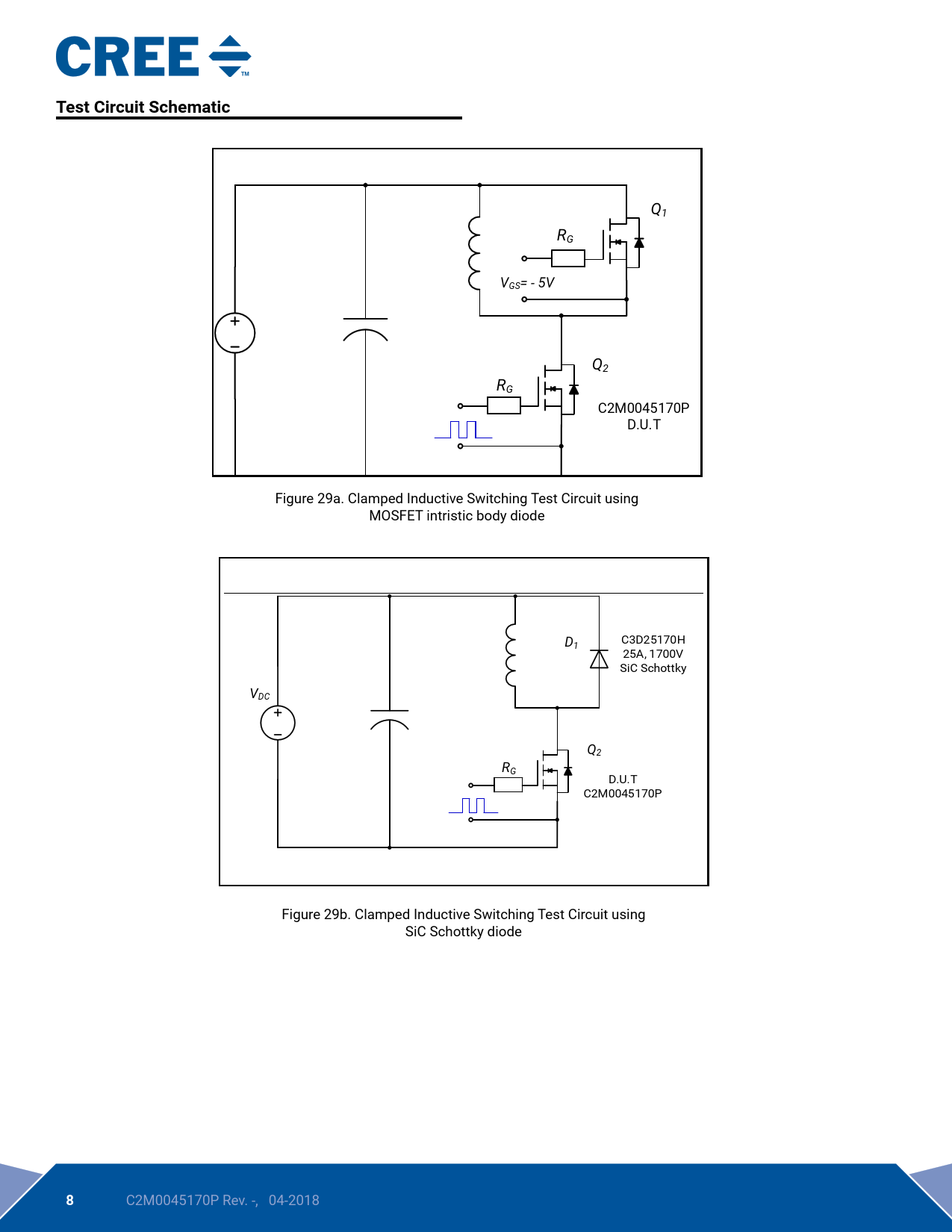

Test Circuit Schematic
Q1 RG VGS= - 5V Q2 RG C2M0045170P D.U.T Figure 29a. Clamped Inductive Switching Test Circuit using MOSFET intristic body diode D C3D25170H 1 25A, 1700V SiC Schottky VDC Q2 RG D.U.T C2M0045170P Figure 29b. Clamped Inductive Switching Test Circuit using SiC Schottky diode
8
C2M0045170P Rev. -, 04-2018
Q1 RG VGS= - 5V Q2 RG C2M0045170P D.U.T Figure 29a. Clamped Inductive Switching Test Circuit using MOSFET intristic body diode D C3D25170H 1 25A, 1700V SiC Schottky VDC Q2 RG D.U.T C2M0045170P Figure 29b. Clamped Inductive Switching Test Circuit using SiC Schottky diode
8
C2M0045170P Rev. -, 04-2018
