| 描述 | NPN SILICON POWER TRANSISTORS |
| 页数 / 页 | 6 / 1 — TIPL762, TIPL762A. NPN SILICON POWER TRANSISTORS. Rugged Triple-Diffused … |
| 文件格式/大小 | PDF / 167 Kb |
| 文件语言 | 英语 |

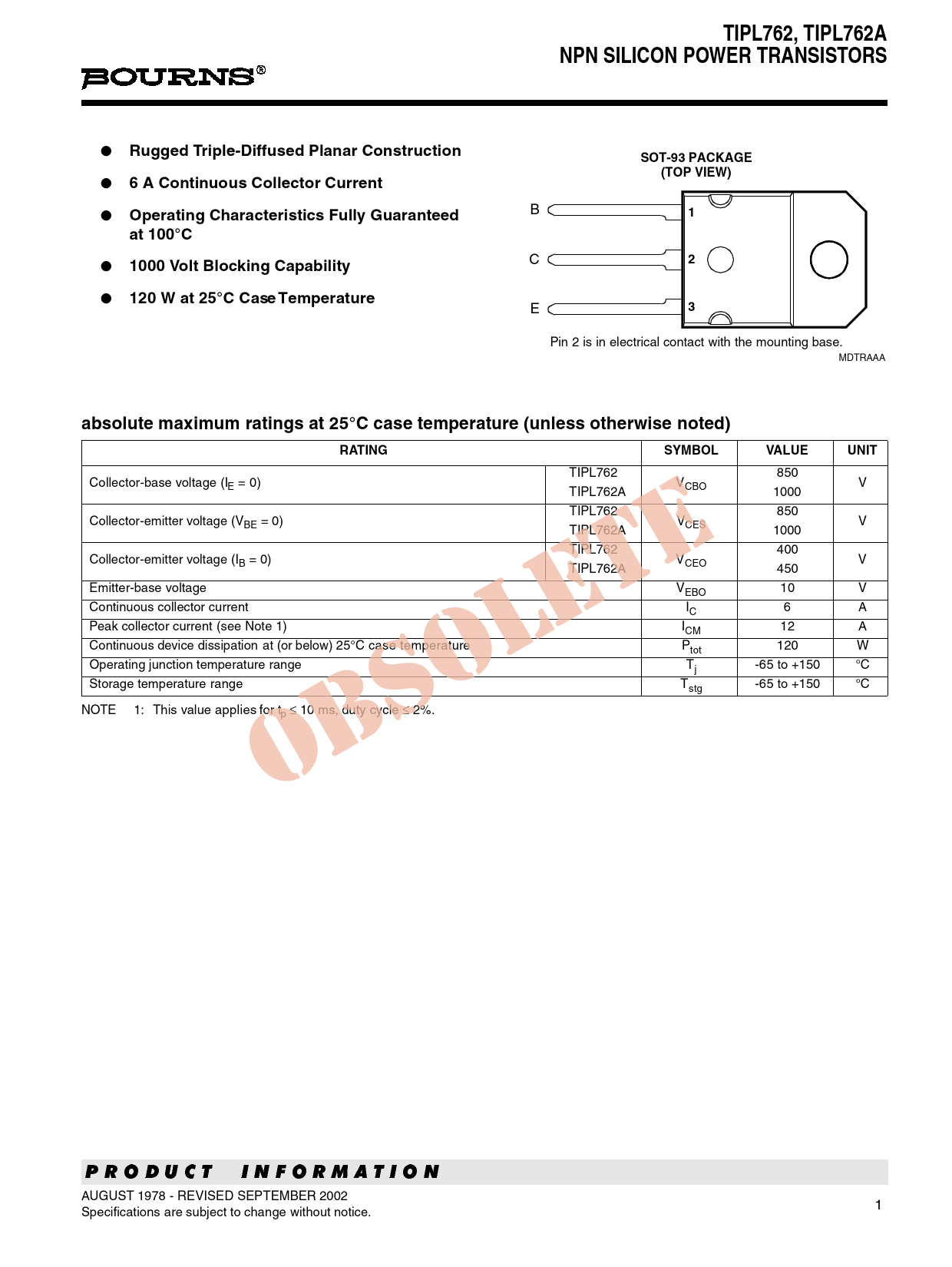

TIPL762, TIPL762A. NPN SILICON POWER TRANSISTORS. Rugged Triple-Diffused Planar Construction. SOT-93 PACKAGE. (TOP VIEW)
该数据表的模型线
文件文字版本
TIPL762, TIPL762A NPN SILICON POWER TRANSISTORS
●
Rugged Triple-Diffused Planar Construction SOT-93 PACKAGE (TOP VIEW)
●
6 A Continuous Collector Current
●
Operating Characteristics Fully Guaranteed
B
1 at 100°C
●
1000 Volt Blocking Capability
C
2
●
120 W at 25°C Case Temperature
E
3
Pin 2 is in electrical contact with the mounting base. MDTRAAA
absolute maximum ratings at 25°C case temperature (unless otherwise noted) RATING SYMBOL VALUE UNIT
TIPL762 850 Collector-base voltage (IE = 0) V V TIPL762A CBO 1000 TIPL762 850 Collector-emitter voltage (VBE = 0) V V TIPL762A CES 1000 TIPL762 400 E Collector-emitter voltage (IB = 0) V V TIPL762A CEO 450 Emitter-base voltage VEBO 10 V Continuous collector current IC 6 A Peak collector current (see Note 1) ICM 12 A Continuous device dissipation at (or below) 25°C case temperature Ptot 120 W Operating junction temperature range Tj -65 to +150 °C Storage temperature range Tstg -65 to +150 °C NOTE 1: This value applies for tp ≤ 10 ms, duty cycle ≤ 2%. OBSOLET AUGUST 1978 - REVISED SEPTEMBER 2002 1 Specifications are subject to change without notice.
●
