MASTERGAN4. Recommended operating conditions. 3.2. Table 3. Recommended operating conditions. Symbol. Parameter. Note. Min Max Unit
该数据表的模型线
文件文字版本
link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 14

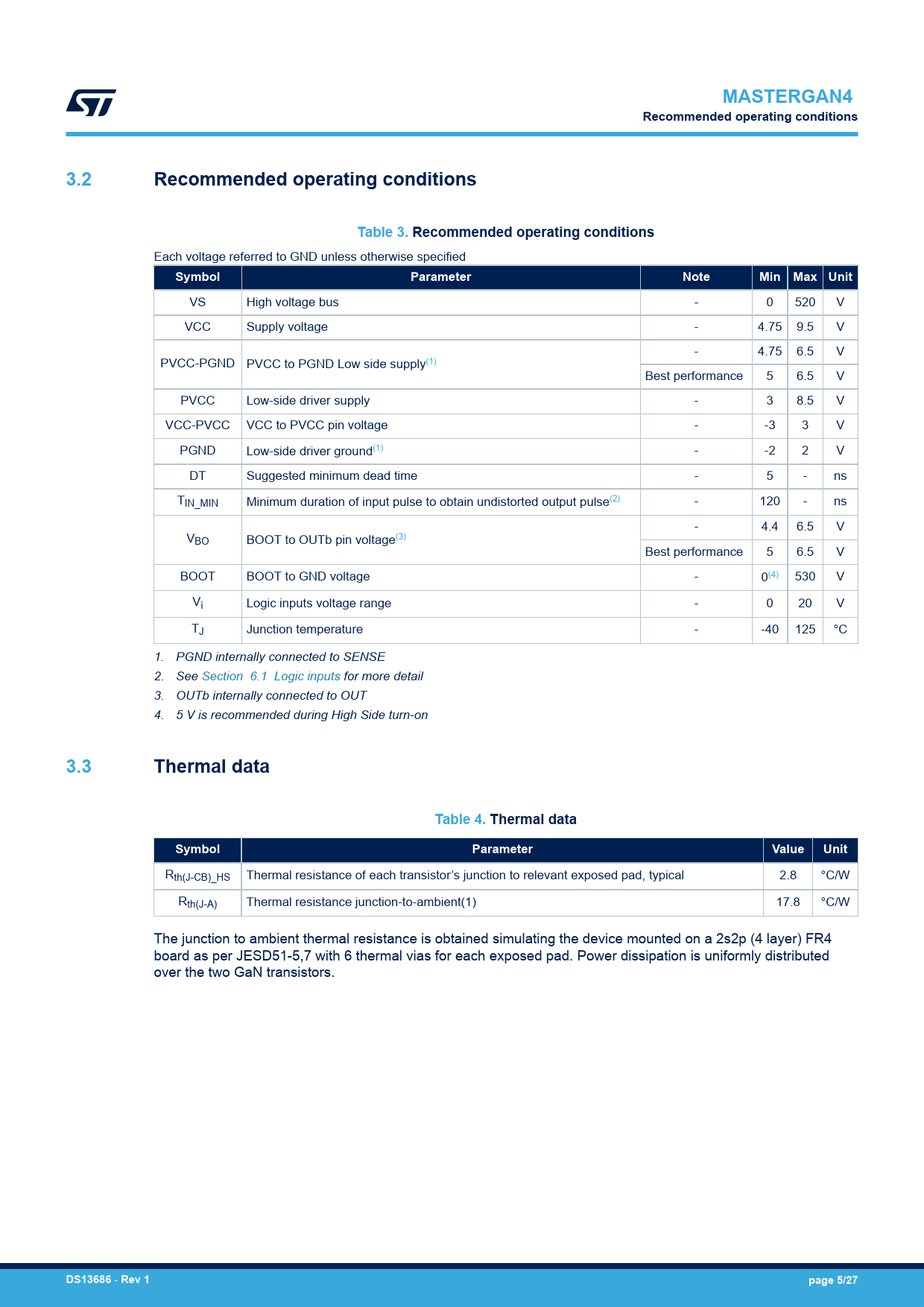

MASTERGAN4 Recommended operating conditions 3.2 Recommended operating conditions Table 3. Recommended operating conditions
Each voltage referred to GND unless otherwise specified
Symbol Parameter Note Min Max Unit
VS High voltage bus - 0 520 V VCC Supply voltage - 4.75 9.5 V - 4.75 6.5 V PVCC-PGND PVCC to PGND Low side supply(1) Best performance 5 6.5 V PVCC Low-side driver supply - 3 8.5 V VCC-PVCC VCC to PVCC pin voltage - -3 3 V PGND Low-side driver ground(1) - -2 2 V DT Suggested minimum dead time - 5 - ns TIN_MIN Minimum duration of input pulse to obtain undistorted output pulse(2) - 120 - ns - 4.4 6.5 V VBO BOOT to OUTb pin voltage(3) Best performance 5 6.5 V BOOT BOOT to GND voltage - 0(4) 530 V Vi Logic inputs voltage range - 0 20 V TJ Junction temperature - -40 125 °C 1. PGND internally connected to SENSE 2. See Section 6.1 Logic inputs for more detail 3. OUTb internally connected to OUT 4. 5 V is recommended during High Side turn-on
3.3 Thermal data Table 4. Thermal data Symbol Parameter Value Unit
Rth(J-CB)_HS Thermal resistance of each transistor’s junction to relevant exposed pad, typical 2.8 °C/W Rth(J-A) Thermal resistance junction-to-ambient(1) 17.8 °C/W The junction to ambient thermal resistance is obtained simulating the device mounted on a 2s2p (4 layer) FR4 board as per JESD51-5,7 with 6 thermal vias for each exposed pad. Power dissipation is uniformly distributed over the two GaN transistors.
