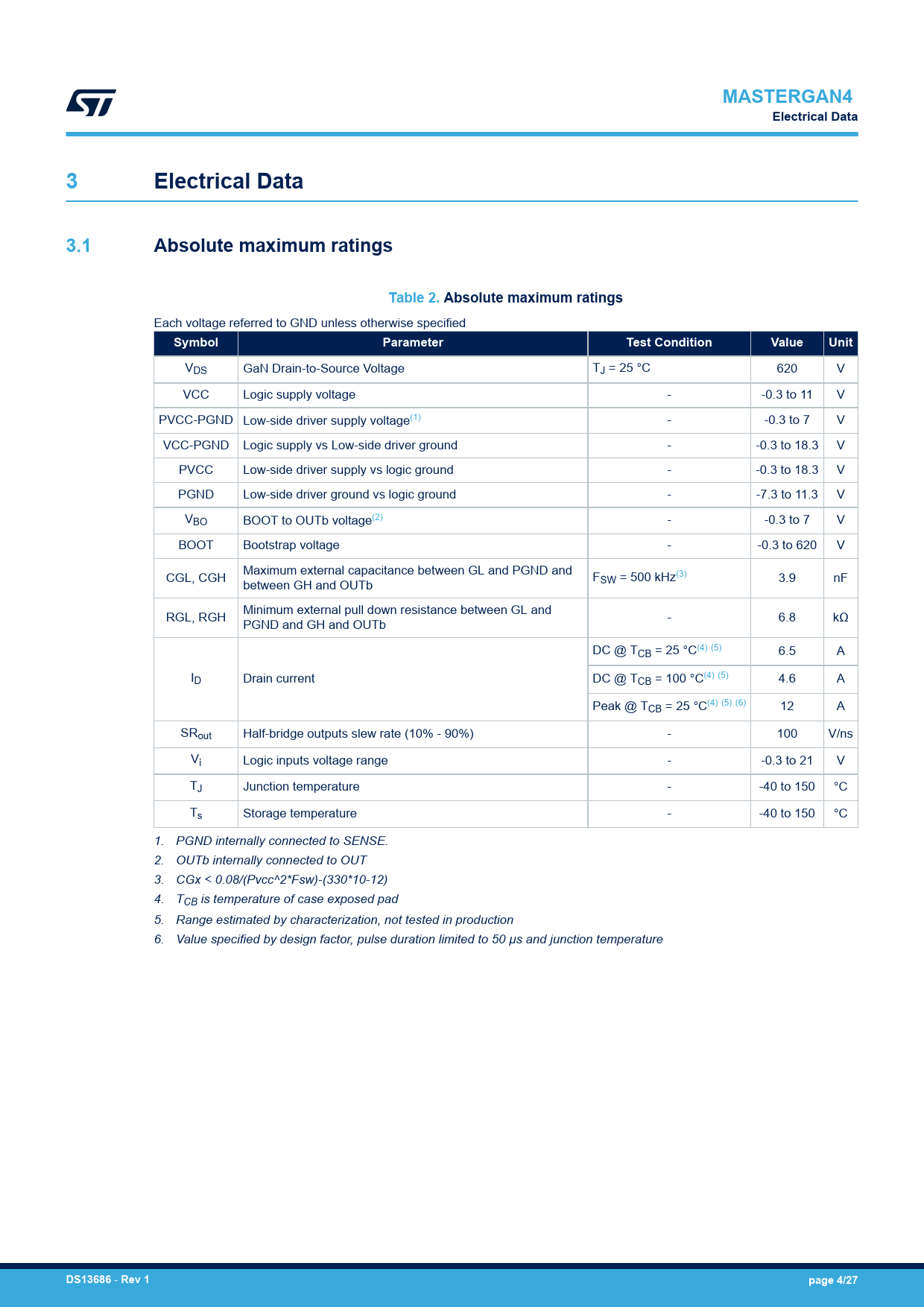

MASTERGAN4 Electrical Data 3 Electrical Data 3.1 Absolute maximum ratings Table 2. Absolute maximum ratings
Each voltage referred to GND unless otherwise specified
Symbol Parameter Test Condition Value Unit
VDS GaN Drain-to-Source Voltage TJ = 25 °C 620 V VCC Logic supply voltage - -0.3 to 11 V PVCC-PGND Low-side driver supply voltage(1) - -0.3 to 7 V VCC-PGND Logic supply vs Low-side driver ground - -0.3 to 18.3 V PVCC Low-side driver supply vs logic ground - -0.3 to 18.3 V PGND Low-side driver ground vs logic ground - -7.3 to 11.3 V VBO BOOT to OUTb voltage(2) - -0.3 to 7 V BOOT Bootstrap voltage - -0.3 to 620 V Maximum external capacitance between GL and PGND and CGL, CGH F between GH and OUTb SW = 500 kHz(3) 3.9 nF Minimum external pull down resistance between GL and RGL, RGH - 6.8 kΩ PGND and GH and OUTb DC @ TCB = 25 °C(4) (5) 6.5 A ID Drain current DC @ TCB = 100 °C(4) (5) 4.6 A Peak @ TCB = 25 °C(4) (5) (6) 12 A SRout Half-bridge outputs slew rate (10% - 90%) - 100 V/ns Vi Logic inputs voltage range - -0.3 to 21 V TJ Junction temperature - -40 to 150 °C Ts Storage temperature - -40 to 150 °C 1. PGND internally connected to SENSE. 2. OUTb internally connected to OUT 3. CGx < 0.08/(Pvcc^2*Fsw)-(330*10-12) 4. TCB is temperature of case exposed pad 5. Range estimated by characterization, not tested in production 6. Value specified by design factor, pulse duration limited to 50 µs and junction temperature
