Datasheet MASTERGAN4 (STMicroelectronics) - 3
| 制造商 | STMicroelectronics |
| 描述 | High power density 600V half-bridge driver with two enhancement mode GaN HEMT |
| 页数 / 页 | 27 / 3 — MASTERGAN4. Pin descriptions and connection diagram. Figure 2. Pin … |
| 文件格式/大小 | PDF / 480 Kb |
| 文件语言 | 英语 |

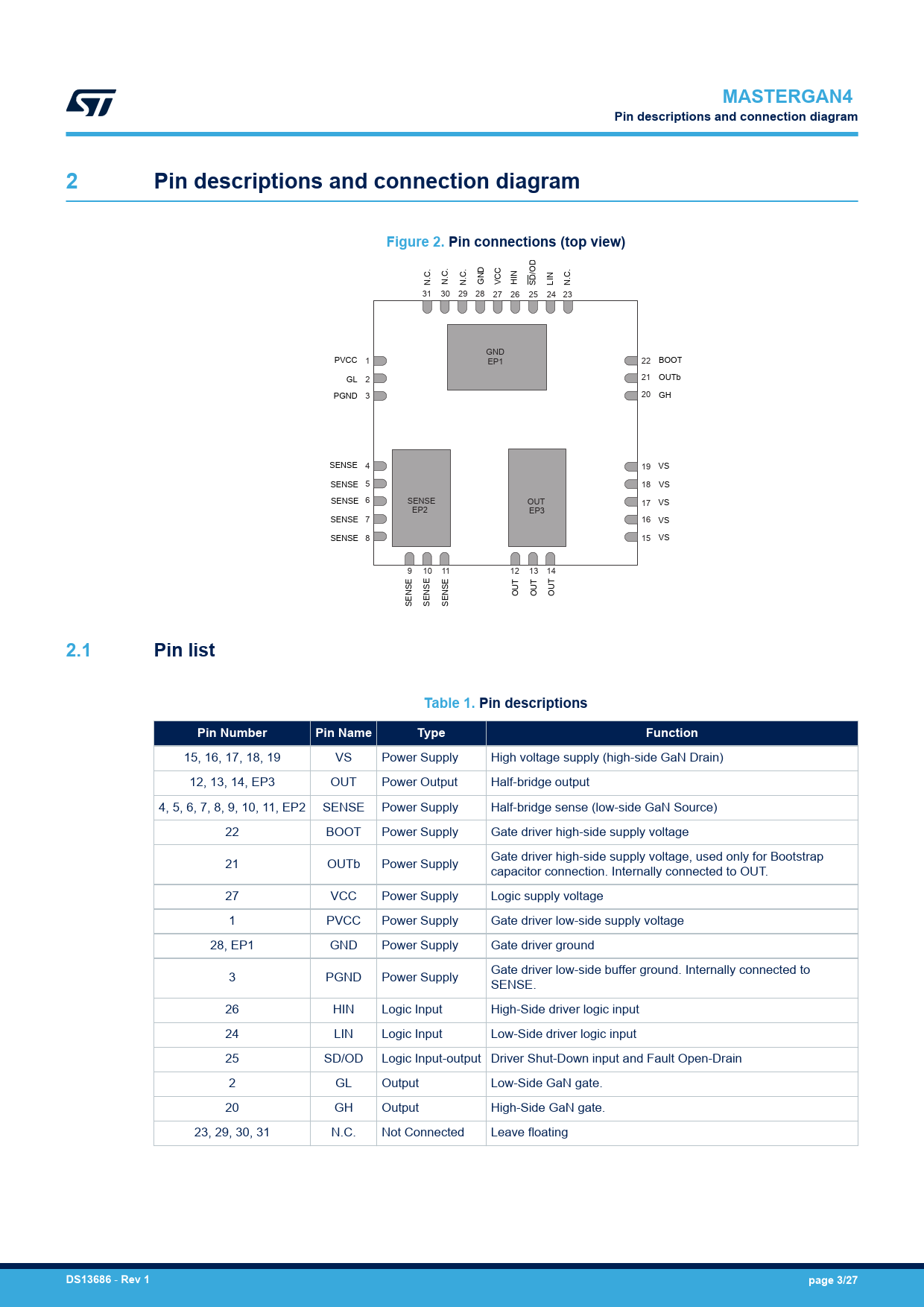

MASTERGAN4. Pin descriptions and connection diagram. Figure 2. Pin connections (top view). 2.1. Pin list
该数据表的模型线
文件文字版本
MASTERGAN4 Pin descriptions and connection diagram 2 Pin descriptions and connection diagram Figure 2. Pin connections (top view)
.C. N.C. N N.C. GND VCC HIN SD/OD LIN N.C. 31 30 29 28 27 26 25 24 23 GND PVCC 1 EP1 22 BOOT GL 2 21 OUTb PGND 3 20 GH SENSE 4 19 VS SENSE 5 18 VS SENSE 6 SENSE OUT 17 VS EP2 EP3 SENSE 7 16 VS SENSE 8 15 VS 9 10 11 12 13 14 OUT OUT OUT SENSE SENSE SENSE
2.1 Pin list Table 1. Pin descriptions Pin Number Pin Name Type Function
15, 16, 17, 18, 19 VS Power Supply High voltage supply (high-side GaN Drain) 12, 13, 14, EP3 OUT Power Output Half-bridge output 4, 5, 6, 7, 8, 9, 10, 11, EP2 SENSE Power Supply Half-bridge sense (low-side GaN Source) 22 BOOT Power Supply Gate driver high-side supply voltage Gate driver high-side supply voltage, used only for Bootstrap 21 OUTb Power Supply capacitor connection. Internally connected to OUT. 27 VCC Power Supply Logic supply voltage 1 PVCC Power Supply Gate driver low-side supply voltage 28, EP1 GND Power Supply Gate driver ground Gate driver low-side buffer ground. Internally connected to 3 PGND Power Supply SENSE. 26 HIN Logic Input High-Side driver logic input 24 LIN Logic Input Low-Side driver logic input 25 SD/OD Logic Input-output Driver Shut-Down input and Fault Open-Drain 2 GL Output Low-Side GaN gate. 20 GH Output High-Side GaN gate. 23, 29, 30, 31 N.C. Not Connected Leave floating
DS13686
-
Rev 1 page 3/27
Document Outline Features Applications Description 1 Block diagram 2 Pin descriptions and connection diagram 2.1 Pin list 3 Electrical Data 3.1 Absolute maximum ratings 3.2 Recommended operating conditions 3.3 Thermal data 4 Electrical characteristics 4.1 Driver 4.2 GaN power transistor 5 Device characterization values 6 Functional description 6.1 Logic inputs 6.2 Bootstrap structure 6.3 VCC supply pins and UVLO function 6.4 VBO UVLO protection 6.5 Thermal shutdown 7 Typical application diagrams 8 Package information 8.1 QFN 9 x 9 x 1 mm, 31 leads, pitch 0.6 mm package information 9 Suggested footprint 10 Ordering information Revision history
