Datasheet STL200N45LF7 (STMicroelectronics) - 6
| 制造商 | STMicroelectronics |
| 描述 | N-channel 45 V, 1.4 mOhm typ., 120 A STripFET F7 Power MOSFET in a PowerFLAT 5x6 package |
| 页数 / 页 | 14 / 6 — Electrical characteristics. STL200N45LF7. 2.1. Electrical characteristics … |
| 文件格式/大小 | PDF / 910 Kb |
| 文件语言 | 英语 |
Electrical characteristics. STL200N45LF7. 2.1. Electrical characteristics (curves). Figure 2: Safe operating area
该数据表的模型线
文件文字版本

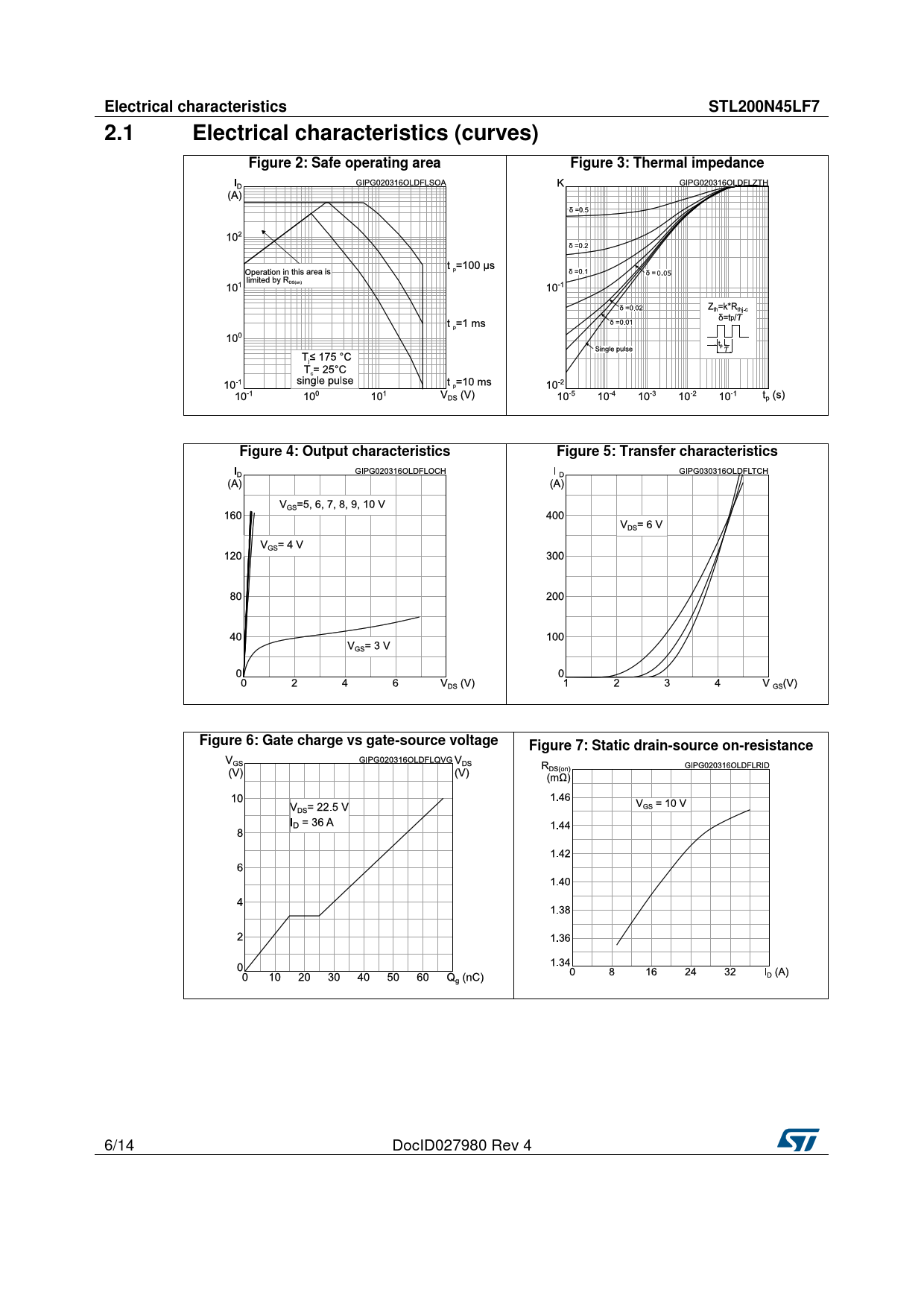

Electrical characteristics STL200N45LF7 2.1 Electrical characteristics (curves) Figure 2: Safe operating area Figure 3: Thermal impedance Figure 4: Output characteristics Figure 5: Transfer characteristics Figure 6: Gate charge vs gate-source voltage Figure 7: Static drain-source on-resistance
