数据表Datasheet STL200N45LF7 (STMicroelectronics)

Datasheet STL200N45LF7 (STMicroelectronics) - 8

制造商STMicroelectronics
描述N-channel 45 V, 1.4 mOhm typ., 120 A STripFET F7 Power MOSFET in a PowerFLAT 5x6 package
页数 / 页14 / 8 — Test circuits. STL200N45LF7. Figure 13: Test circuit for resistive load. …
文件格式/大小PDF / 910 Kb
文件语言英语

Test circuits. STL200N45LF7. Figure 13: Test circuit for resistive load. Figure 14: Test circuit for gate charge

Test circuits STL200N45LF7 Figure 13: Test circuit for resistive load Figure 14: Test circuit for gate charge

该数据表的模型线

STL200N45LF7

文件文字版本

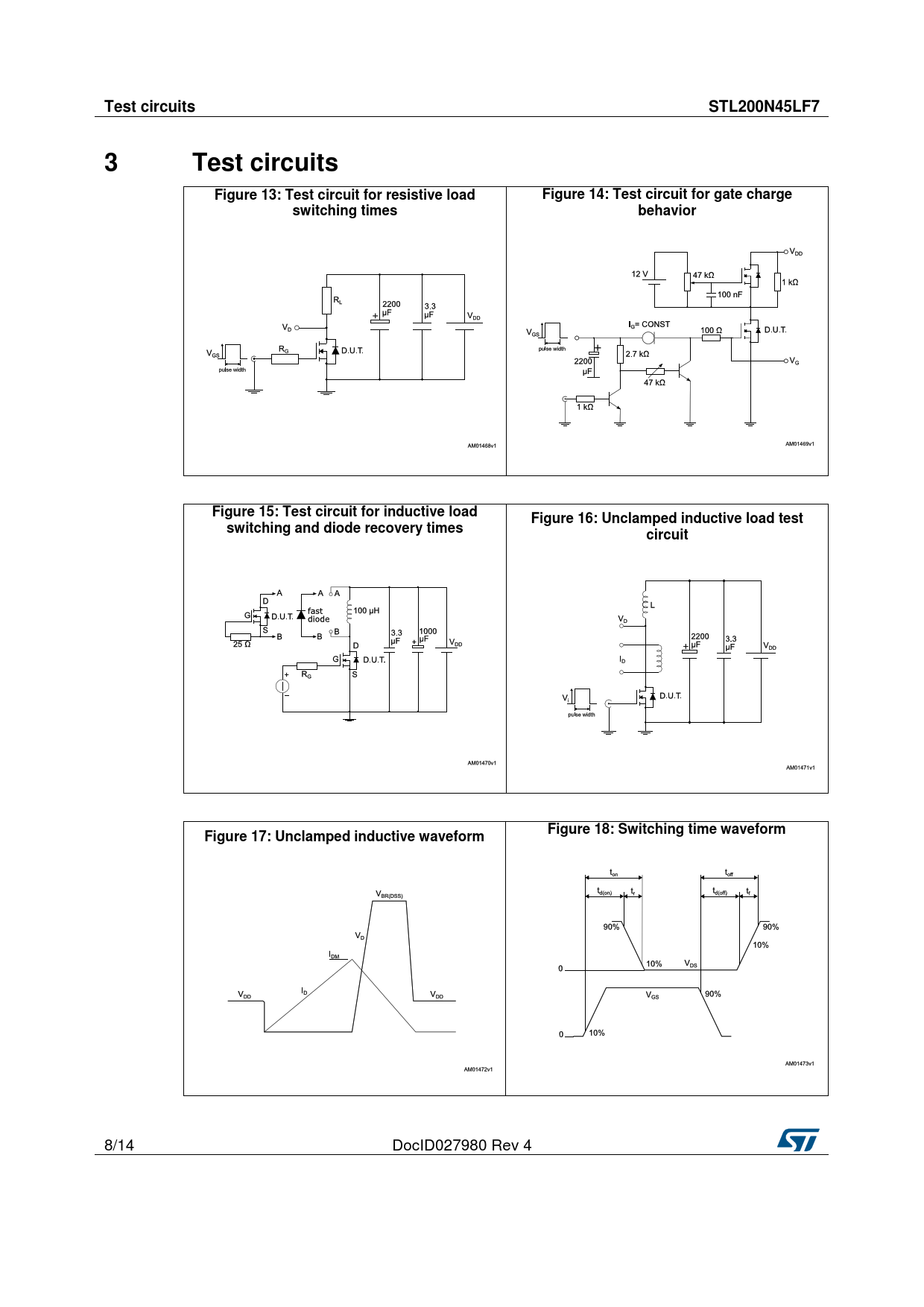

Test circuits STL200N45LF7 3 Test circuits Figure 13: Test circuit for resistive load Figure 14: Test circuit for gate charge switching times behavior Figure 15: Test circuit for inductive load Figure 16: Unclamped inductive load test switching and diode recovery times circuit Figure 18: Switching time waveform Figure 17: Unclamped inductive waveform
