Datasheet STL200N45LF7 (STMicroelectronics) - 9
| 制造商 | STMicroelectronics |
| 描述 | N-channel 45 V, 1.4 mOhm typ., 120 A STripFET F7 Power MOSFET in a PowerFLAT 5x6 package |
| 页数 / 页 | 14 / 9 — STL200N45LF7. Package information. www.st.com. 4.1. PowerFLAT™ 5x6 type C … |
| 文件格式/大小 | PDF / 910 Kb |
| 文件语言 | 英语 |
STL200N45LF7. Package information. www.st.com. 4.1. PowerFLAT™ 5x6 type C package information
该数据表的模型线
文件文字版本
STL200N45LF7 Package information 4 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at:
www.st.com
. ECOPACK® is an ST trademark.

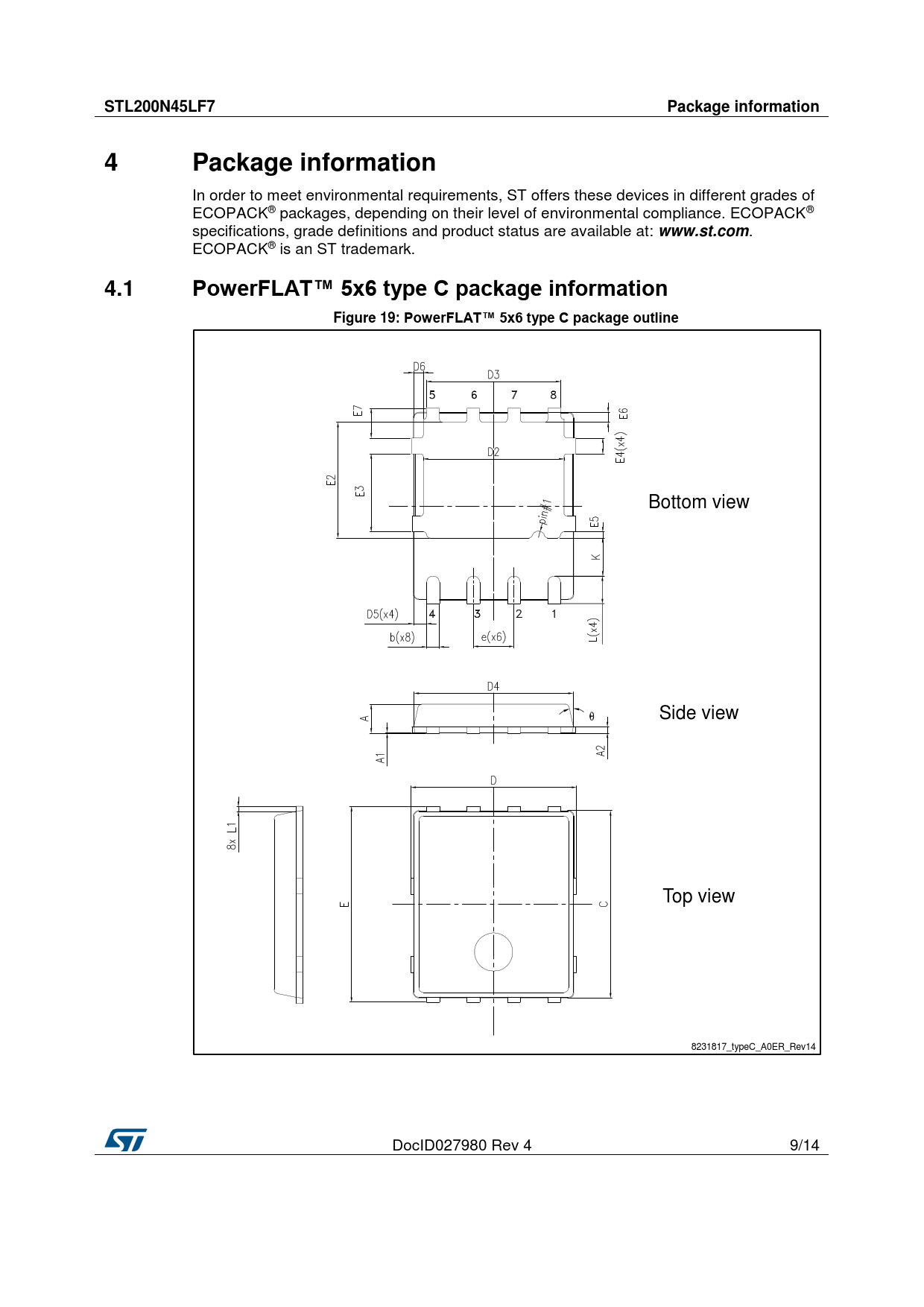

4.1 PowerFLAT™ 5x6 type C package information Figure 19: PowerFLAT™ 5x6 type C package outline
Bottom view Side view Top view 8231817_typeC_A0ER_Rev14 DocID027980 Rev 4 9/14
