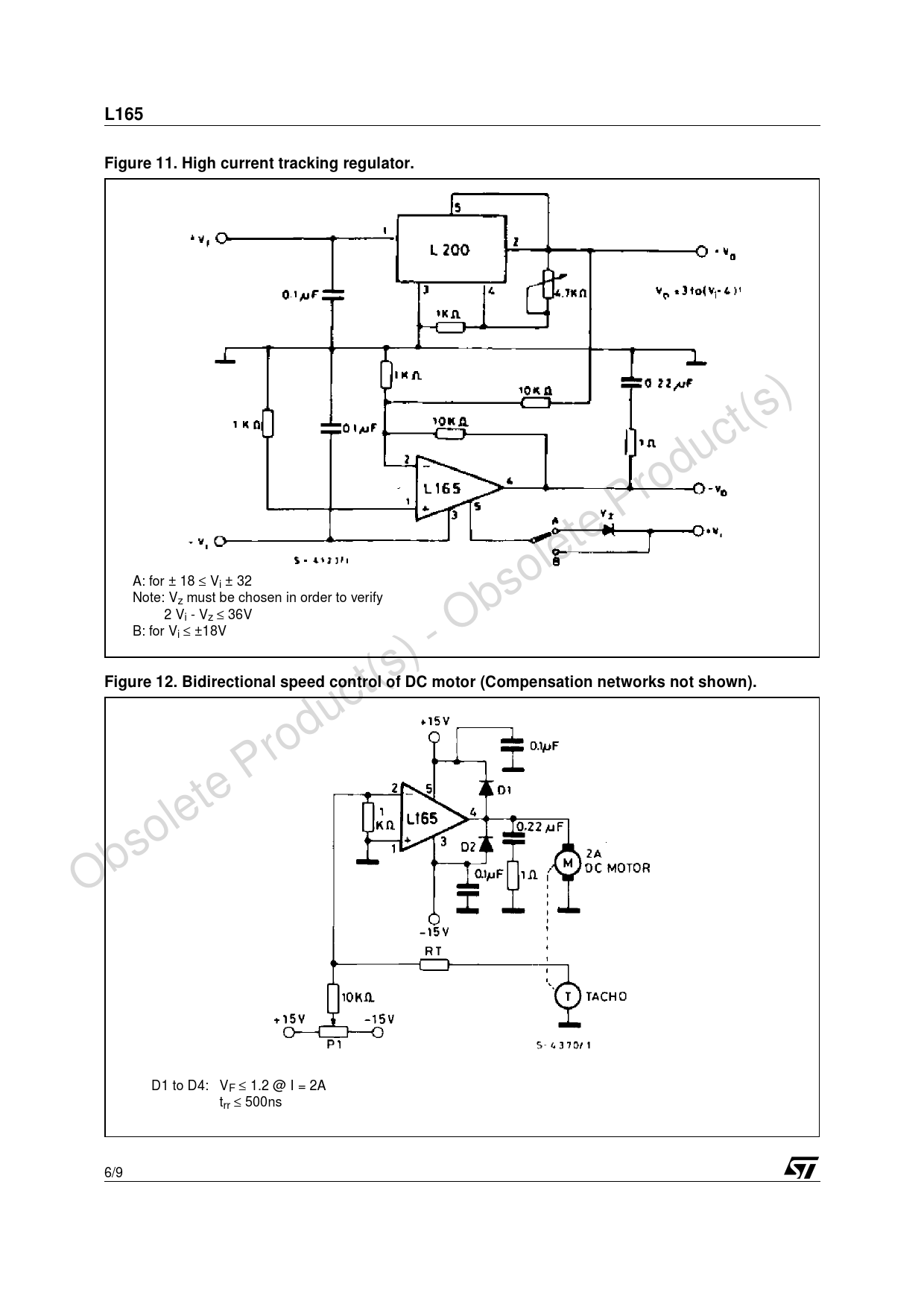

L165. Figure 11. High current tracking regulator
该数据表的模型线
文件文字版本
L165 Figure 11. High current tracking regulator.
A: for ± 18 ≤ Vi ± 32 Note: Vz must be chosen in order to verify 2 Vi - Vz ≤ 36V B: for Vi ≤ ±18V
Figure 12. Bidirectional speed control of DC motor (Compensation networks not shown).
Obsolete Product(s) - Obsolete Product(s) D1 to D4: VF ≤ 1.2 @ I = 2A trr ≤ 500ns 6/9
A: for ± 18 ≤ Vi ± 32 Note: Vz must be chosen in order to verify 2 Vi - Vz ≤ 36V B: for Vi ≤ ±18V
Figure 12. Bidirectional speed control of DC motor (Compensation networks not shown).
Obsolete Product(s) - Obsolete Product(s) D1 to D4: VF ≤ 1.2 @ I = 2A trr ≤ 500ns 6/9
