Datasheet ADG658-EP (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | +3V/+5V/± 5V CMOS 8-Channel Analog Multiplexer |
| 页数 / 页 | 10 / 1 — +3 V/+5 V/±5 V, CMOS, 8-Channel. Analog Multiplexer. Enhanced Product. … |
| 文件格式/大小 | PDF / 219 Kb |
| 文件语言 | 英语 |

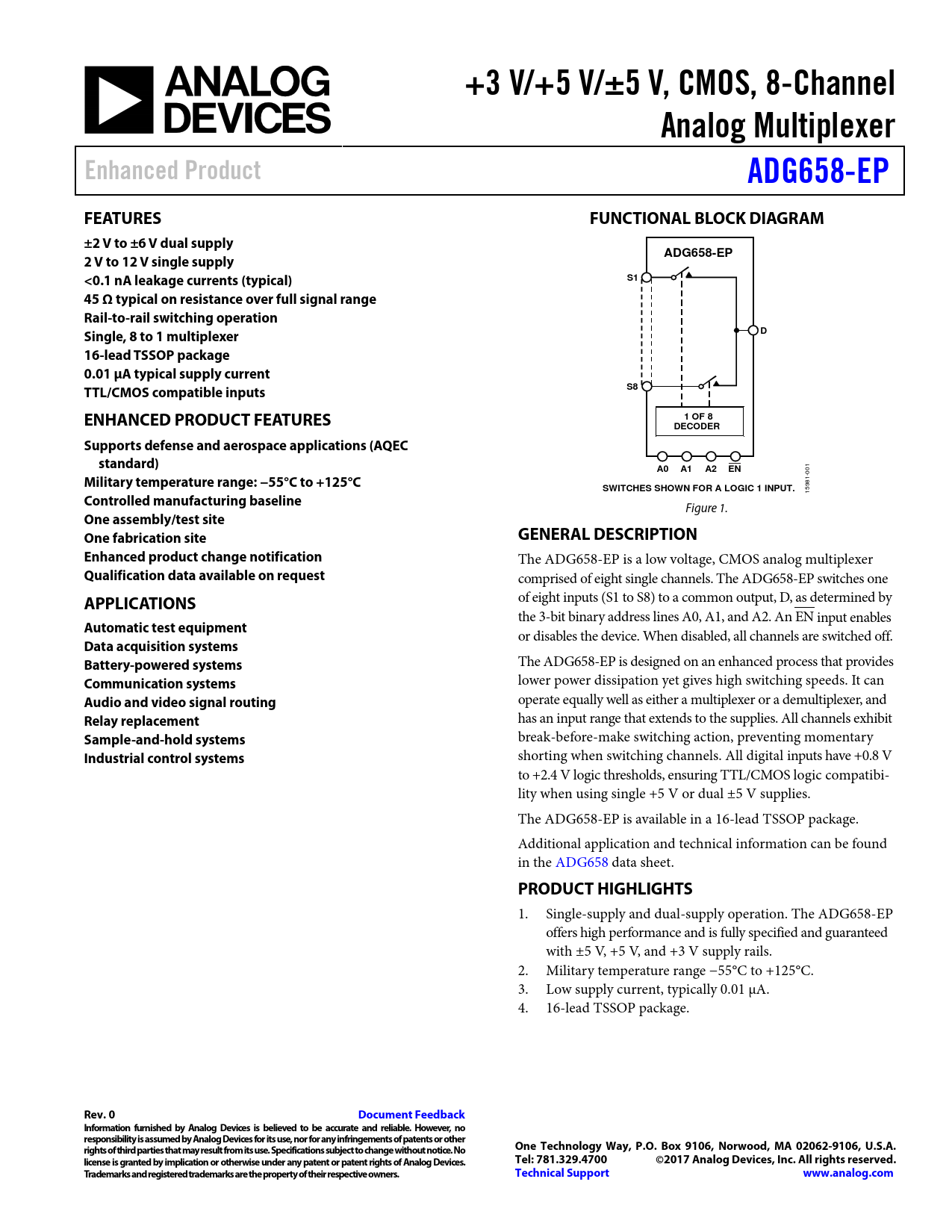

+3 V/+5 V/±5 V, CMOS, 8-Channel. Analog Multiplexer. Enhanced Product. ADG658-EP. FEATURES. FUNCTIONAL BLOCK DIAGRAM
该数据表的模型线
文件文字版本
+3 V/+5 V/±5 V, CMOS, 8-Channel Analog Multiplexer Enhanced Product ADG658-EP FEATURES FUNCTIONAL BLOCK DIAGRAM ±2 V to ±6 V dual supply ADG658-EP 2 V to 12 V single supply <0.1 nA leakage currents (typical) S1 45 Ω typical on resistance over full signal range Rail-to-rail switching operation Single, 8 to 1 multiplexer D 16-lead TSSOP package 0.01 μA typical supply current TTL/CMOS compatible inputs S8 ENHANCED PRODUCT FEATURES 1 OF 8 DECODER Supports defense and aerospace applications (AQEC standard) A0 A1 A2 EN
001
Military temperature range: −55°C to +125°C SWITCHES SHOWN FOR A LOGIC 1 INPUT.
15981-
Controlled manufacturing baseline
Figure 1.
One assembly/test site One fabrication site GENERAL DESCRIPTION Enhanced product change notification
The ADG658-EP is a low voltage, CMOS analog multiplexer
Qualification data available on request
comprised of eight single channels. The ADG658-EP switches one
APPLICATIONS
of eight inputs (S1 to S8) to a common output, D, as determined by the 3-bit binary address lines A0, A1, and A2. An EN input enables
Automatic test equipment
or disables the device. When disabled, al channels are switched off.
Data acquisition systems Battery-powered systems
The ADG658-EP is designed on an enhanced process that provides
Communication systems
lower power dissipation yet gives high switching speeds. It can
Audio and video signal routing
operate equally well as either a multiplexer or a demultiplexer, and
Relay replacement
has an input range that extends to the supplies. All channels exhibit
Sample-and-hold systems
break-before-make switching action, preventing momentary
Industrial control systems
shorting when switching channels. All digital inputs have +0.8 V to +2.4 V logic thresholds, ensuring TTL/CMOS logic compatibi- lity when using single +5 V or dual ±5 V supplies. The ADG658-EP is available in a 16-lead TSSOP package. Additional application and technical information can be found in the ADG658 data sheet.
PRODUCT HIGHLIGHTS
1. Single-supply and dual-supply operation. The ADG658-EP offers high performance and is fully specified and guaranteed with ±5 V, +5 V, and +3 V supply rails. 2. Military temperature range −55°C to +125°C. 3. Low supply current, typically 0.01 µA. 4. 16-lead TSSOP package.
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY 5 V SINGLE SUPPLY 2.7 V TO 3.6 V SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
