Enhanced Product. ADG658-EP. 2.7 V TO 3.6 V SINGLE SUPPLY. Table 3. Parameter. +25°C. −55°C to +125°C. Unit. Test Conditions/Comments
该数据表的模型线
文件文字版本

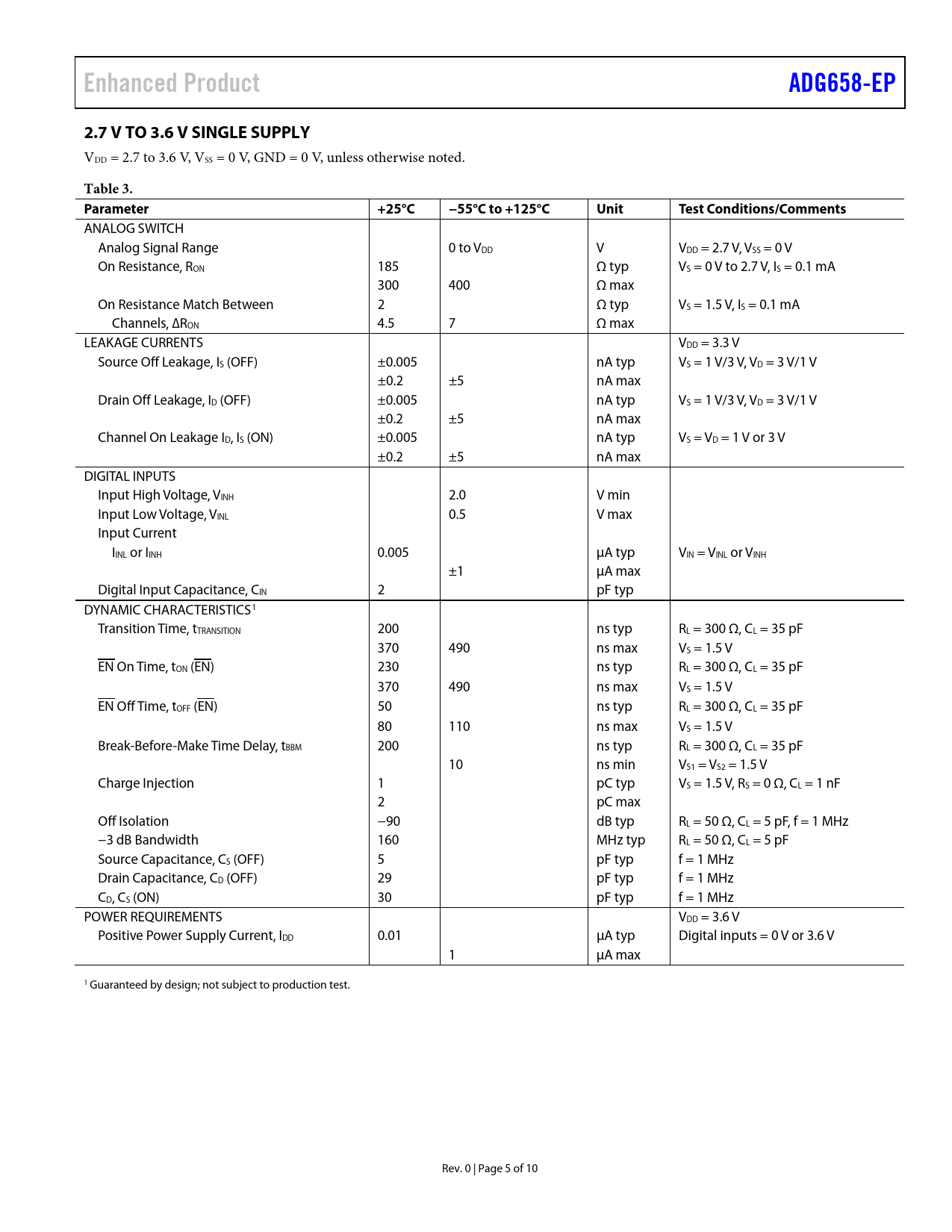

Enhanced Product ADG658-EP 2.7 V TO 3.6 V SINGLE SUPPLY
VDD = 2.7 to 3.6 V, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. Parameter +25°C −55°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V VDD = 2.7 V, VSS = 0 V On Resistance, RON 185 Ω typ VS = 0 V to 2.7 V, IS = 0.1 mA 300 400 Ω max On Resistance Match Between 2 Ω typ VS = 1.5 V, IS = 0.1 mA Channels, ∆RON 4.5 7 Ω max LEAKAGE CURRENTS VDD = 3.3 V Source Off Leakage, IS (OFF) ±0.005 nA typ VS = 1 V/3 V, VD = 3 V/1 V ±0.2 ±5 nA max Drain Off Leakage, ID (OFF) ±0.005 nA typ VS = 1 V/3 V, VD = 3 V/1 V ±0.2 ±5 nA max Channel On Leakage ID, IS (ON) ±0.005 nA typ VS = VD = 1 V or 3 V ±0.2 ±5 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.5 V max Input Current IINL or IINH 0.005 µA typ VIN = VINL or VINH ±1 µA max Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 200 ns typ RL = 300 Ω, CL = 35 pF 370 490 ns max VS = 1.5 V EN On Time, tON (EN) 230 ns typ RL = 300 Ω, CL = 35 pF 370 490 ns max VS = 1.5 V EN Off Time, tOFF (EN) 50 ns typ RL = 300 Ω, CL = 35 pF 80 110 ns max VS = 1.5 V Break-Before-Make Time Delay, tBBM 200 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 1.5 V Charge Injection 1 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF 2 pC max Off Isolation −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz −3 dB Bandwidth 160 MHz typ RL = 50 Ω, CL = 5 pF Source Capacitance, CS (OFF) 5 pF typ f = 1 MHz Drain Capacitance, CD (OFF) 29 pF typ f = 1 MHz CD, CS (ON) 30 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 3.6 V Positive Power Supply Current, IDD 0.01 µA typ Digital inputs = 0 V or 3.6 V 1 µA max 1 Guaranteed by design; not subject to production test. Rev. 0 | Page 5 of 10 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY 5 V SINGLE SUPPLY 2.7 V TO 3.6 V SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
VDD = 2.7 to 3.6 V, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. Parameter +25°C −55°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V VDD = 2.7 V, VSS = 0 V On Resistance, RON 185 Ω typ VS = 0 V to 2.7 V, IS = 0.1 mA 300 400 Ω max On Resistance Match Between 2 Ω typ VS = 1.5 V, IS = 0.1 mA Channels, ∆RON 4.5 7 Ω max LEAKAGE CURRENTS VDD = 3.3 V Source Off Leakage, IS (OFF) ±0.005 nA typ VS = 1 V/3 V, VD = 3 V/1 V ±0.2 ±5 nA max Drain Off Leakage, ID (OFF) ±0.005 nA typ VS = 1 V/3 V, VD = 3 V/1 V ±0.2 ±5 nA max Channel On Leakage ID, IS (ON) ±0.005 nA typ VS = VD = 1 V or 3 V ±0.2 ±5 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.5 V max Input Current IINL or IINH 0.005 µA typ VIN = VINL or VINH ±1 µA max Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 200 ns typ RL = 300 Ω, CL = 35 pF 370 490 ns max VS = 1.5 V EN On Time, tON (EN) 230 ns typ RL = 300 Ω, CL = 35 pF 370 490 ns max VS = 1.5 V EN Off Time, tOFF (EN) 50 ns typ RL = 300 Ω, CL = 35 pF 80 110 ns max VS = 1.5 V Break-Before-Make Time Delay, tBBM 200 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 1.5 V Charge Injection 1 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF 2 pC max Off Isolation −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz −3 dB Bandwidth 160 MHz typ RL = 50 Ω, CL = 5 pF Source Capacitance, CS (OFF) 5 pF typ f = 1 MHz Drain Capacitance, CD (OFF) 29 pF typ f = 1 MHz CD, CS (ON) 30 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 3.6 V Positive Power Supply Current, IDD 0.01 µA typ Digital inputs = 0 V or 3.6 V 1 µA max 1 Guaranteed by design; not subject to production test. Rev. 0 | Page 5 of 10 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY 5 V SINGLE SUPPLY 2.7 V TO 3.6 V SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
