ADG658-EP. Enhanced Product. 5 V SINGLE SUPPLY. Table 2. Parameter. +25°C. −55°C to +125°C. Unit. Test Conditions/Comments
该数据表的模型线
文件文字版本

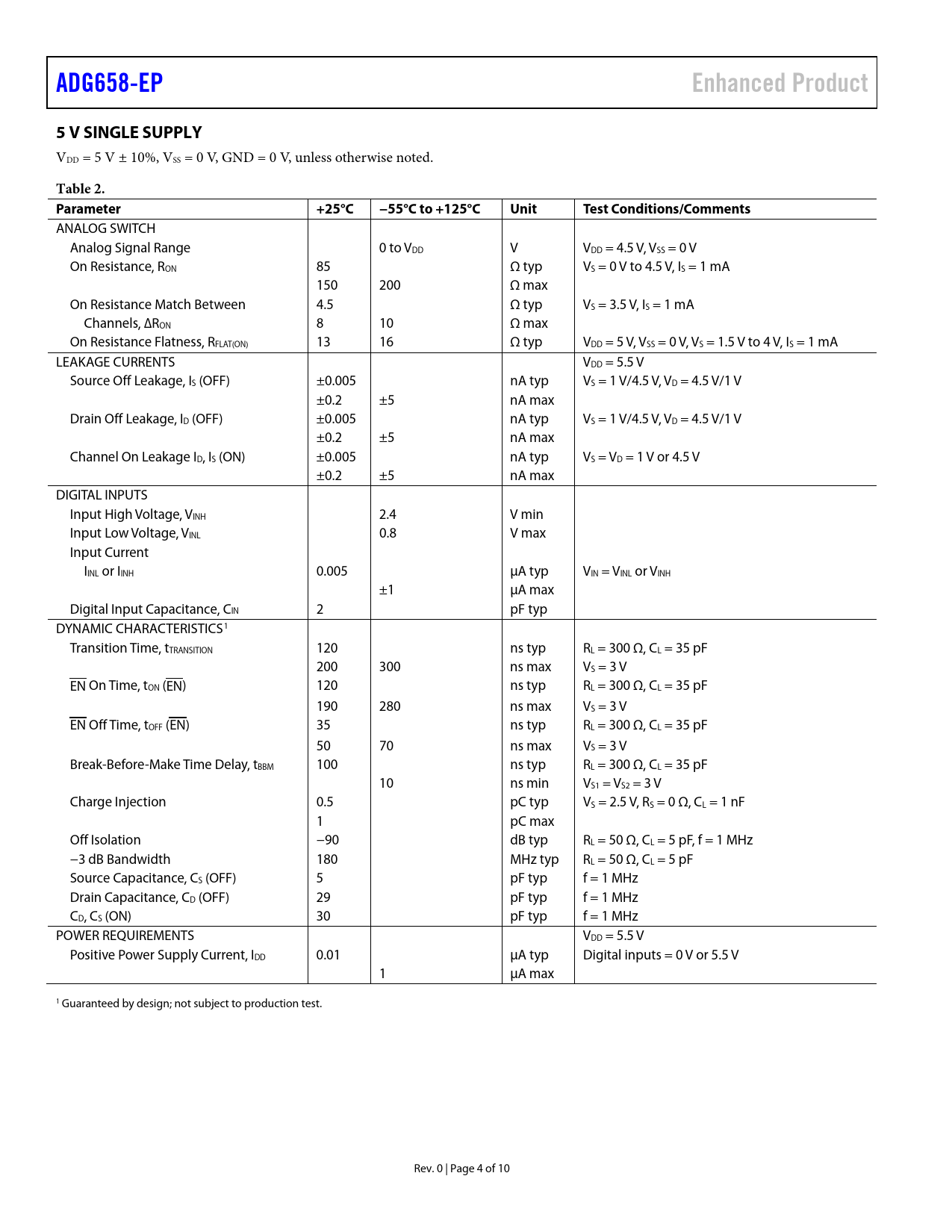

ADG658-EP Enhanced Product 5 V SINGLE SUPPLY
VDD = 5 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. Parameter +25°C −55°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V VDD = 4.5 V, VSS = 0 V On Resistance, RON 85 Ω typ VS = 0 V to 4.5 V, IS = 1 mA 150 200 Ω max On Resistance Match Between 4.5 Ω typ VS = 3.5 V, IS = 1 mA Channels, ∆RON 8 10 Ω max On Resistance Flatness, RFLAT(ON) 13 16 Ω typ VDD = 5 V, VSS = 0 V, VS = 1.5 V to 4 V, IS = 1 mA LEAKAGE CURRENTS VDD = 5.5 V Source Off Leakage, IS (OFF) ±0.005 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V ±0.2 ±5 nA max Drain Off Leakage, ID (OFF) ±0.005 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V ±0.2 ±5 nA max Channel On Leakage ID, IS (ON) ±0.005 nA typ VS = VD = 1 V or 4.5 V ±0.2 ±5 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH 0.005 µA typ VIN = VINL or VINH ±1 µA max Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 120 ns typ RL = 300 Ω, CL = 35 pF 200 300 ns max VS = 3 V EN On Time, tON (EN) 120 ns typ RL = 300 Ω, CL = 35 pF 190 280 ns max VS = 3 V EN Off Time, tOFF (EN) 35 ns typ RL = 300 Ω, CL = 35 pF 50 70 ns max VS = 3 V Break-Before-Make Time Delay, tBBM 100 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 3 V Charge Injection 0.5 pC typ VS = 2.5 V, RS = 0 Ω, CL = 1 nF 1 pC max Off Isolation −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz −3 dB Bandwidth 180 MHz typ RL = 50 Ω, CL = 5 pF Source Capacitance, CS (OFF) 5 pF typ f = 1 MHz Drain Capacitance, CD (OFF) 29 pF typ f = 1 MHz CD, CS (ON) 30 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 5.5 V Positive Power Supply Current, IDD 0.01 µA typ Digital inputs = 0 V or 5.5 V 1 µA max 1 Guaranteed by design; not subject to production test. Rev. 0 | Page 4 of 10 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY 5 V SINGLE SUPPLY 2.7 V TO 3.6 V SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
VDD = 5 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. Parameter +25°C −55°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V VDD = 4.5 V, VSS = 0 V On Resistance, RON 85 Ω typ VS = 0 V to 4.5 V, IS = 1 mA 150 200 Ω max On Resistance Match Between 4.5 Ω typ VS = 3.5 V, IS = 1 mA Channels, ∆RON 8 10 Ω max On Resistance Flatness, RFLAT(ON) 13 16 Ω typ VDD = 5 V, VSS = 0 V, VS = 1.5 V to 4 V, IS = 1 mA LEAKAGE CURRENTS VDD = 5.5 V Source Off Leakage, IS (OFF) ±0.005 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V ±0.2 ±5 nA max Drain Off Leakage, ID (OFF) ±0.005 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V ±0.2 ±5 nA max Channel On Leakage ID, IS (ON) ±0.005 nA typ VS = VD = 1 V or 4.5 V ±0.2 ±5 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH 0.005 µA typ VIN = VINL or VINH ±1 µA max Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 120 ns typ RL = 300 Ω, CL = 35 pF 200 300 ns max VS = 3 V EN On Time, tON (EN) 120 ns typ RL = 300 Ω, CL = 35 pF 190 280 ns max VS = 3 V EN Off Time, tOFF (EN) 35 ns typ RL = 300 Ω, CL = 35 pF 50 70 ns max VS = 3 V Break-Before-Make Time Delay, tBBM 100 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 3 V Charge Injection 0.5 pC typ VS = 2.5 V, RS = 0 Ω, CL = 1 nF 1 pC max Off Isolation −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz −3 dB Bandwidth 180 MHz typ RL = 50 Ω, CL = 5 pF Source Capacitance, CS (OFF) 5 pF typ f = 1 MHz Drain Capacitance, CD (OFF) 29 pF typ f = 1 MHz CD, CS (ON) 30 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 5.5 V Positive Power Supply Current, IDD 0.01 µA typ Digital inputs = 0 V or 5.5 V 1 µA max 1 Guaranteed by design; not subject to production test. Rev. 0 | Page 4 of 10 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY 5 V SINGLE SUPPLY 2.7 V TO 3.6 V SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
