Datasheet PM2E (Prolight) - 9
| 制造商 | Prolight |
| 描述 | 3W Power LED |
| 页数 / 页 | 20 / 9 — Forward Voltage Bin Structure at 700mA. Color. Bin Code. Minimum Voltage … |
| 文件格式/大小 | PDF / 683 Kb |
| 文件语言 | 英语 |

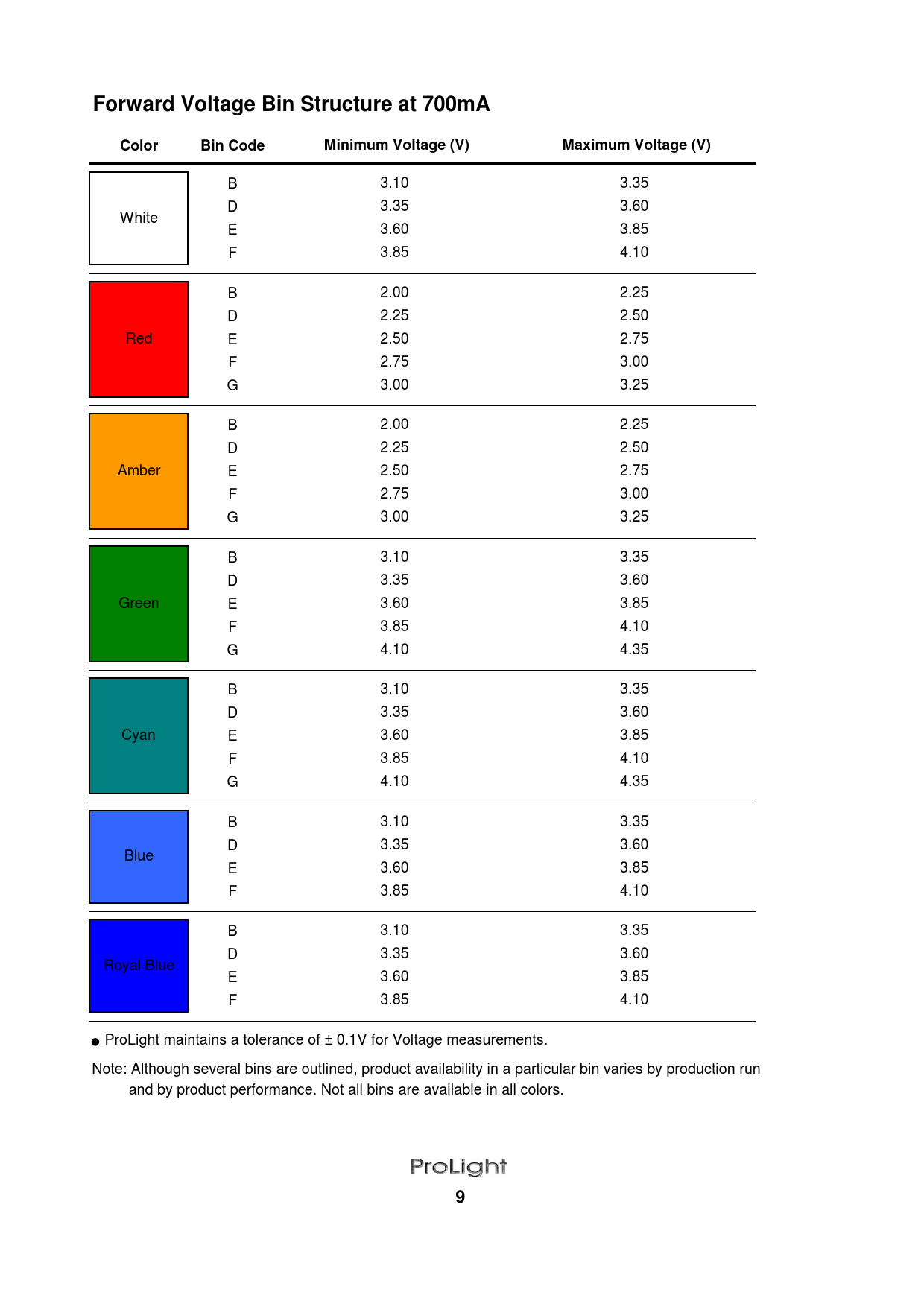

Forward Voltage Bin Structure at 700mA. Color. Bin Code. Minimum Voltage (V). Maximum Voltage (V)
该数据表的模型线
文件文字版本
Forward Voltage Bin Structure at 700mA Color Bin Code Minimum Voltage (V) Maximum Voltage (V)
B 3.10 3.35 D 3.35 3.60 White E 3.60 3.85 F 3.85 4.10 B 2.00 2.25 D 2.25 2.50 Red E 2.50 2.75 F 2.75 3.00 G 3.00 3.25 B 2.00 2.25 D 2.25 2.50 Amber E 2.50 2.75 F 2.75 3.00 G 3.00 3.25 B 3.10 3.35 D 3.35 3.60 Green E 3.60 3.85 F 3.85 4.10 G 4.10 4.35 B 3.10 3.35 D 3.35 3.60 Cyan E 3.60 3.85 F 3.85 4.10 G 4.10 4.35 B 3.10 3.35 D 3.35 3.60 Blue E 3.60 3.85 F 3.85 4.10 B 3.10 3.35 D 3.35 3.60 Royal Blue E 3.60 3.85 F 3.85 4.10 ● ProLight maintains a tolerance of ± 0.1V for Voltage measurements. Note: Although several bins are outlined, product availability in a particular bin varies by production run and by product performance. Not all bins are available in all colors.
9
