Low-Cost, Micropower, Low-Dropout,. High-Output-Current, SOT23 Voltage References. MAX6100–MAX6107
该数据表的模型线
文件文字版本

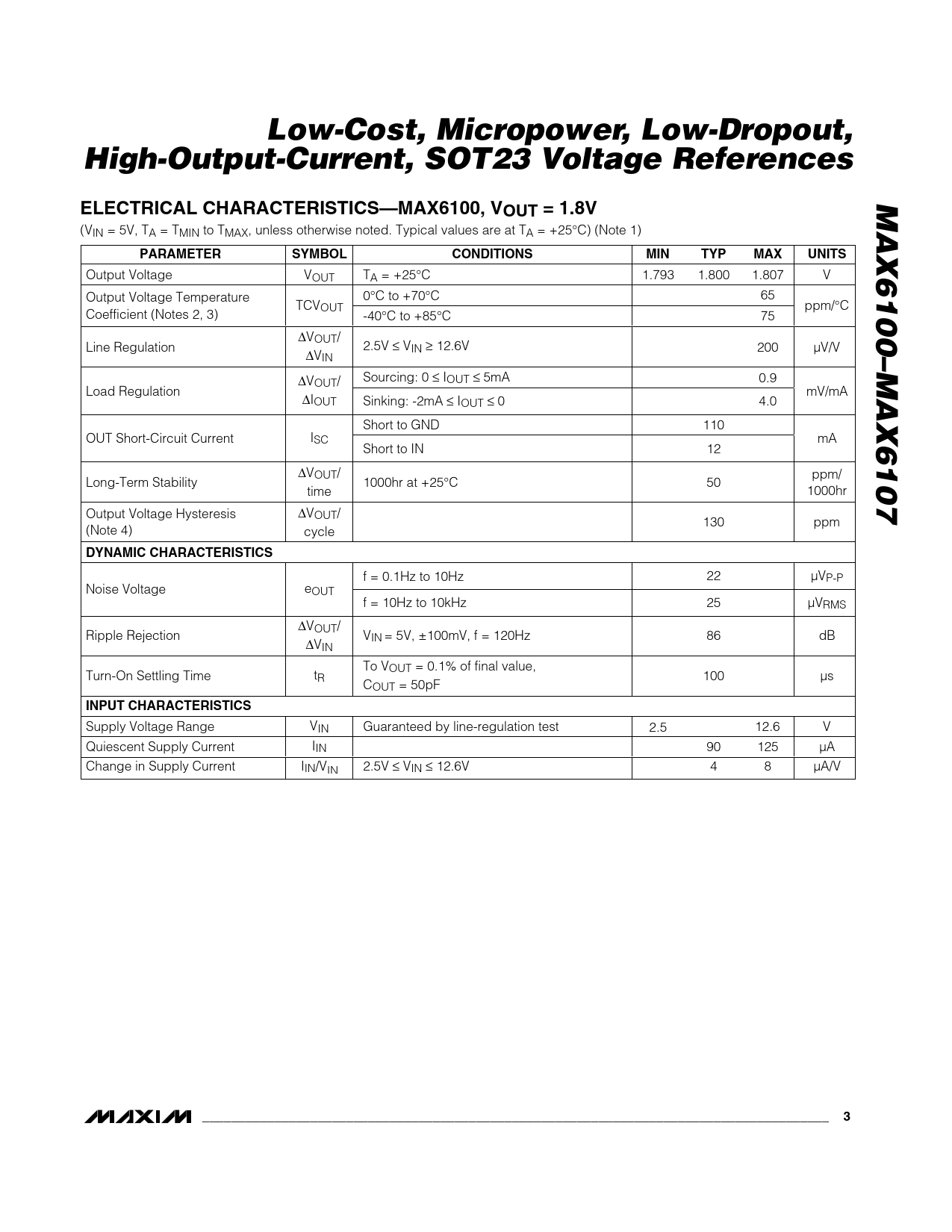

Low-Cost, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References MAX6100–MAX6107 ELECTRICAL CHARACTERISTICS—MAX6100, VOUT = 1.8V
(VIN = 5V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Output Voltage VOUT TA = +25°C 1.793 1.800 1.807 V Output Voltage Temperature 0°C to +70°C 65 TCVOUT ppm/°C Coefficient (Notes 2, 3) -40°C to +85°C 75 ∆VOUT/ Line Regulation 2.5V ≤ V ∆ IN ≥ 12.6V 200 µV/V VIN Sourcing: 0 ≤ IOUT ≤ 5mA 0.9 ∆VOUT/ Load Regulation ∆ mV/mA IOUT Sinking: -2mA ≤ IOUT ≤ 0 4.0 Short to GND 110 OUT Short-Circuit Current ISC mA Short to IN 12 ∆VOUT/ ppm/ Long-Term Stability 1000hr at +25°C 50 time 1000hr Output Voltage Hysteresis ∆VOUT/ 130 ppm (Note 4) cycle
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 22 µVP-P Noise Voltage eOUT f = 10Hz to 10kHz 25 µVRMS ∆VOUT/ Ripple Rejection V = 5V, ±100mV, f = 120Hz ∆ IN 86 dB V IN To VOUT = 0.1% of final value, Turn-On Settling Time tR 100 µs COUT = 50pF
INPUT CHARACTERISTICS
Supply Voltage Range VIN Guaranteed by line-regulation test 2.5 12.6 V Quiescent Supply Current IIN 90 125 µA Change in Supply Current IIN/VIN 2.5V ≤ VIN ≤ 12.6V 4 8 µA/V
_______________________________________________________________________________________ 3
(VIN = 5V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Output Voltage VOUT TA = +25°C 1.793 1.800 1.807 V Output Voltage Temperature 0°C to +70°C 65 TCVOUT ppm/°C Coefficient (Notes 2, 3) -40°C to +85°C 75 ∆VOUT/ Line Regulation 2.5V ≤ V ∆ IN ≥ 12.6V 200 µV/V VIN Sourcing: 0 ≤ IOUT ≤ 5mA 0.9 ∆VOUT/ Load Regulation ∆ mV/mA IOUT Sinking: -2mA ≤ IOUT ≤ 0 4.0 Short to GND 110 OUT Short-Circuit Current ISC mA Short to IN 12 ∆VOUT/ ppm/ Long-Term Stability 1000hr at +25°C 50 time 1000hr Output Voltage Hysteresis ∆VOUT/ 130 ppm (Note 4) cycle
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 22 µVP-P Noise Voltage eOUT f = 10Hz to 10kHz 25 µVRMS ∆VOUT/ Ripple Rejection V = 5V, ±100mV, f = 120Hz ∆ IN 86 dB V IN To VOUT = 0.1% of final value, Turn-On Settling Time tR 100 µs COUT = 50pF
INPUT CHARACTERISTICS
Supply Voltage Range VIN Guaranteed by line-regulation test 2.5 12.6 V Quiescent Supply Current IIN 90 125 µA Change in Supply Current IIN/VIN 2.5V ≤ VIN ≤ 12.6V 4 8 µA/V
_______________________________________________________________________________________ 3
