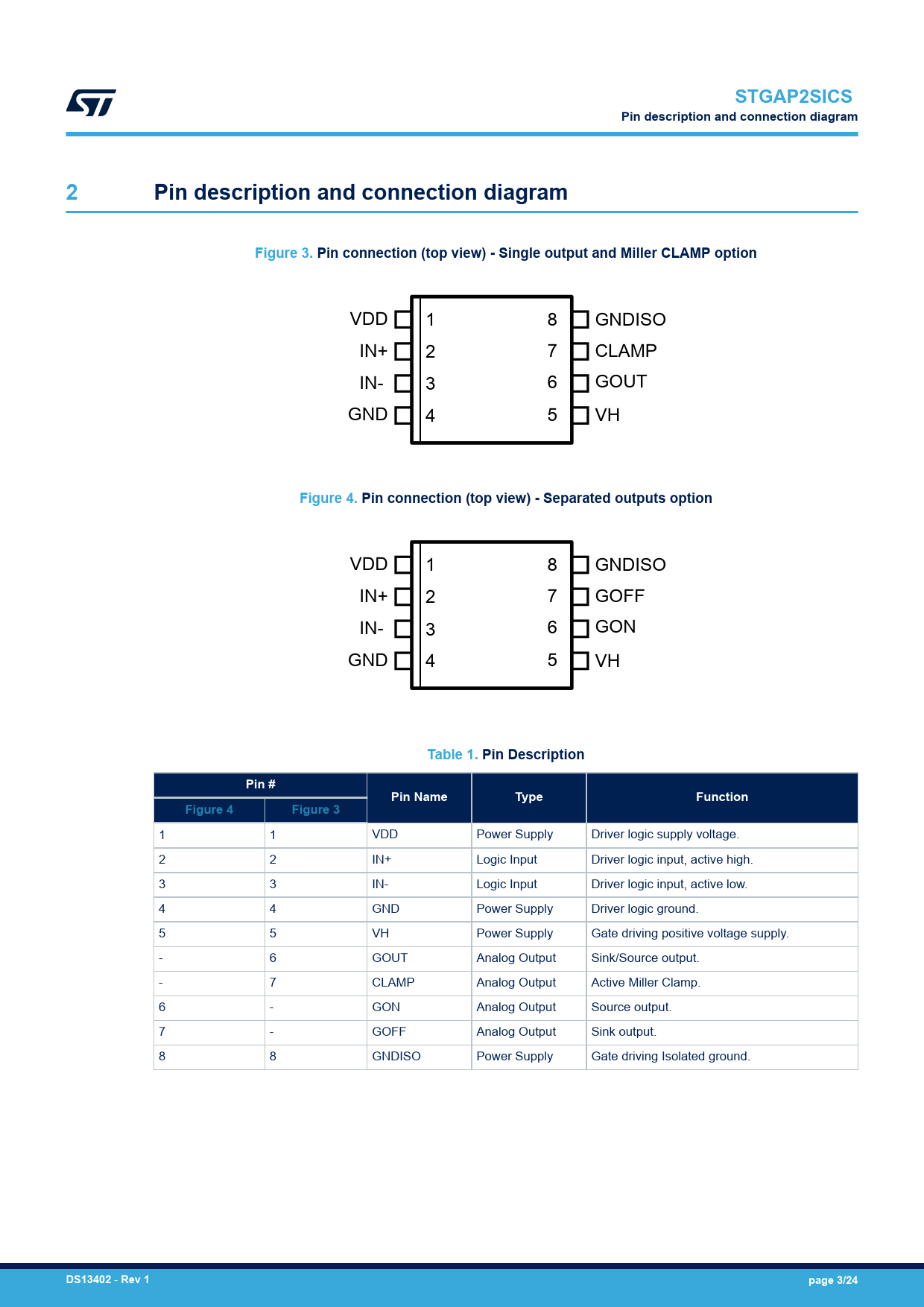

STGAP2SICS Pin description and connection diagram 2 Pin description and connection diagram Figure 3. Pin connection (top view) - Single output and Miller CLAMP option
VDD 1 8 GNDISO IN+ 2 7 CLAMP IN- 3 6 GOUT GND 4 5 VH
Figure 4. Pin connection (top view) - Separated outputs option
VDD 1 8 GNDISO IN+ 2 7 GOFF IN- 3 6 GON GND 4 5 VH
Table 1. Pin Description Pin # Pin Name Type Function Figure 4 Figure 3
1 1 VDD Power Supply Driver logic supply voltage. 2 2 IN+ Logic Input Driver logic input, active high. 3 3 IN- Logic Input Driver logic input, active low. 4 4 GND Power Supply Driver logic ground. 5 5 VH Power Supply Gate driving positive voltage supply. - 6 GOUT Analog Output Sink/Source output. - 7 CLAMP Analog Output Active Miller Clamp. 6 - GON Analog Output Source output. 7 - GOFF Analog Output Sink output. 8 8 GNDISO Power Supply Gate driving Isolated ground.
DS13402
-
Rev 1 page 3/24
