Datasheet AD8422 (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | High Performance, Low Power, Rail-to-Rail Precision Instrumentation Amplifier |
| 页数 / 页 | 24 / 9 — Data Sheet. AD8422. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 655 Kb |
| 文件语言 | 英语 |

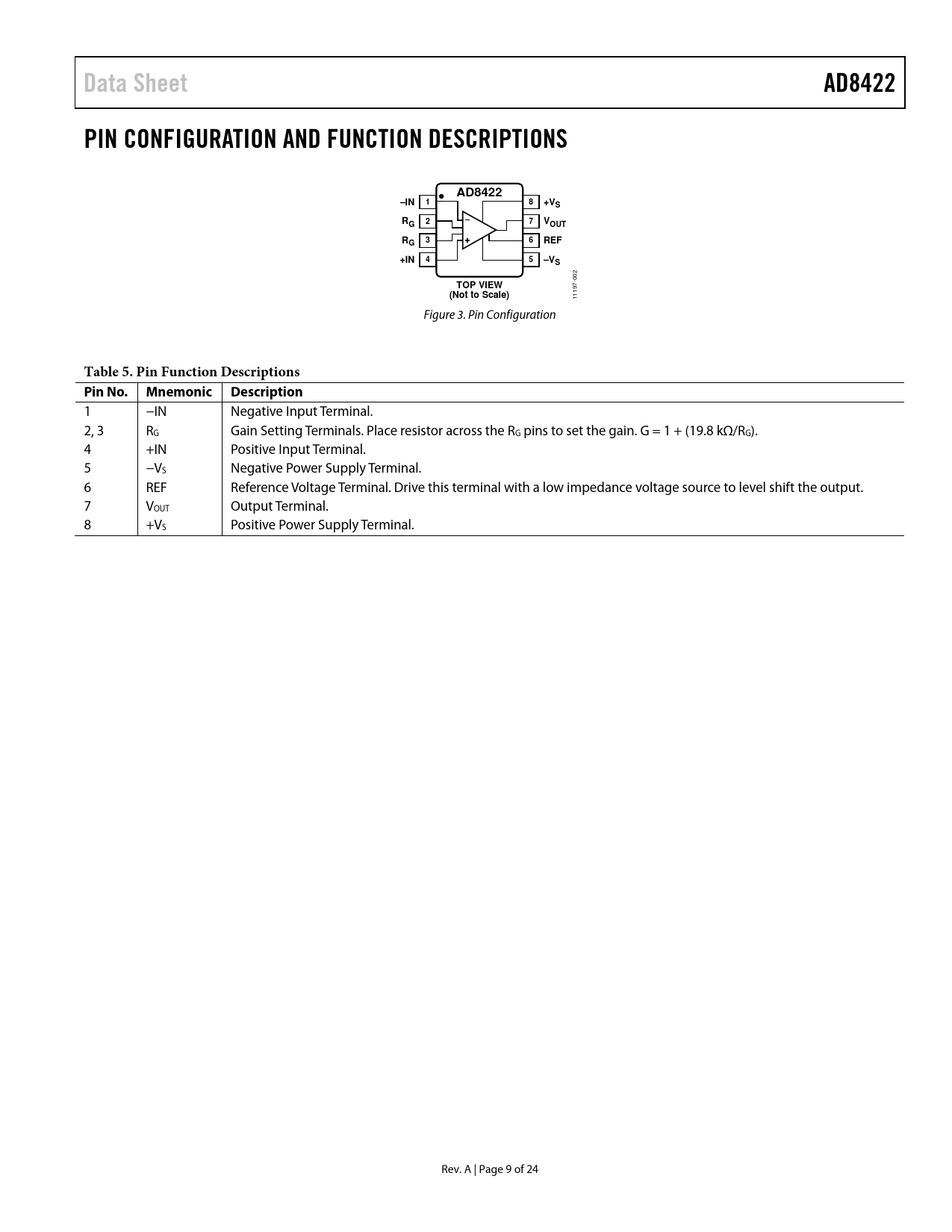

Data Sheet. AD8422. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. +VS. VOUT. REF. +IN. –VS. TOP VIEW. (Not to Scale)
该数据表的模型线
文件文字版本
Data Sheet AD8422 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS AD8422 –IN 1 8 +VS RG 2 7 VOUT RG 3 6 REF +IN 4 5 –VS
002
TOP VIEW (Not to Scale)
11197- Figure 3. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 −IN Negative Input Terminal. 2, 3 RG Gain Setting Terminals. Place resistor across the RG pins to set the gain. G = 1 + (19.8 kΩ/RG). 4 +IN Positive Input Terminal. 5 −VS Negative Power Supply Terminal. 6 REF Reference Voltage Terminal. Drive this terminal with a low impedance voltage source to level shift the output. 7 VOUT Output Terminal. 8 +VS Positive Power Supply Terminal. Rev. A | Page 9 of 24 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS SOIC PACKAGE MSOP PACKAGE ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ARCHITECTURE GAIN SELECTION RG Power Dissipation REFERENCE TERMINAL INPUT VOLTAGE RANGE LAYOUT Common-Mode Rejection Ratio over Frequency Power Supplies and Grounding Reference Pin INPUT BIAS CURRENT RETURN PATH INPUT VOLTAGES BEYOND THE SUPPLY RAILS Input Voltages Beyond the Maximum Ratings RADIO FREQUENCY INTERFERENCE (RFI) APPLICATIONS INFORMATION PRECISION BRIDGE CONDITIONING PROCESS CONTROL ANALOG INPUT OUTLINE DIMENSIONS ORDERING GUIDE
