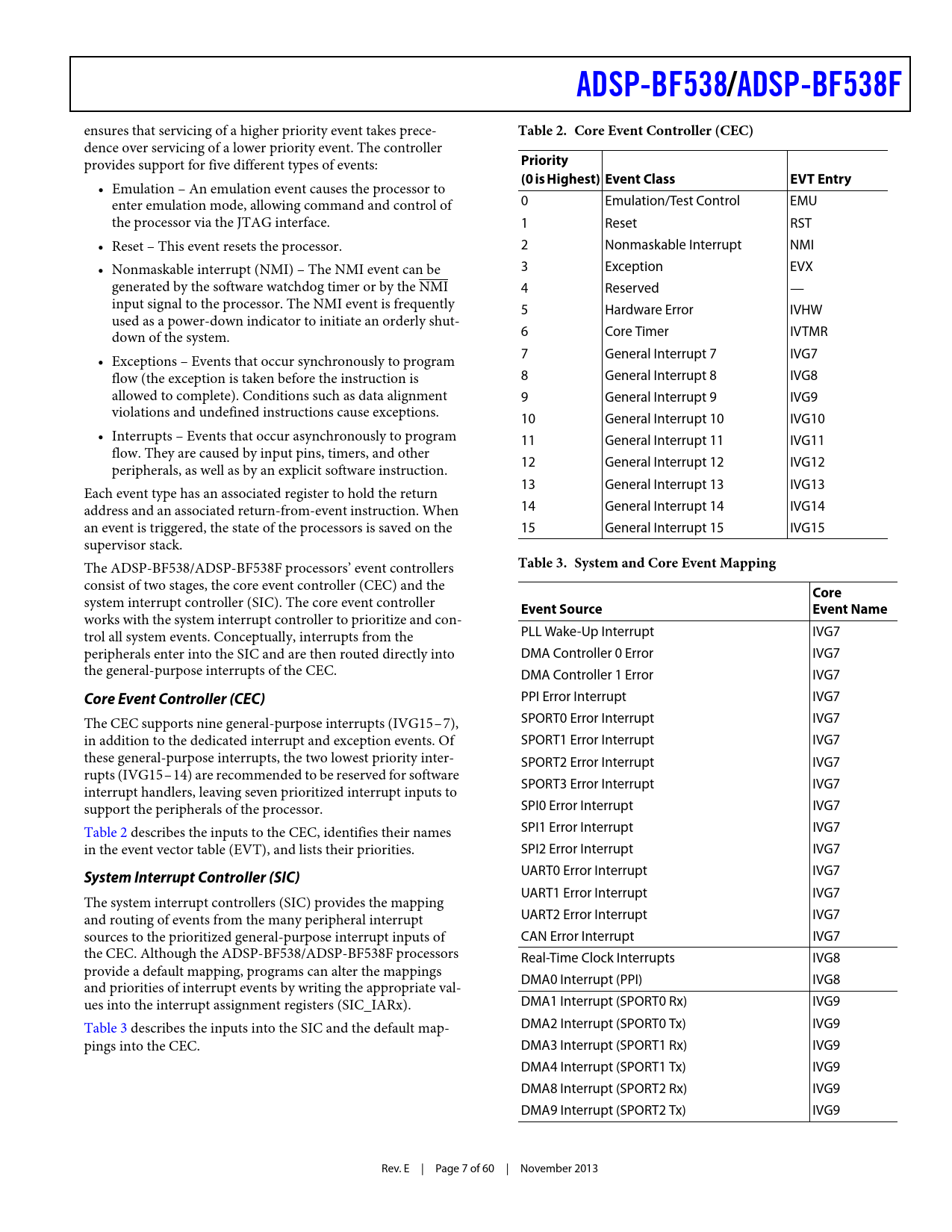

ADSP-BF538/ ADSP-BF538F
ensures that servicing of a higher priority event takes prece-
Table 2. Core Event Controller (CEC)
dence over servicing of a lower priority event. The controller provides support for five different types of events:
Priority (0 is Highest) Event Class EVT Entry
• Emulation – An emulation event causes the processor to enter emulation mode, allowing command and control of 0 Em ulation/Test Control EMU the processor via the JTAG interface. 1 Reset RST • Reset – This event resets the processor. 2 Nonmaskable Interrupt NMI • Nonmaskable interrupt (NMI) – The NMI event can be 3 Exception EVX generated by the software watchdog timer or by the NMI 4 Reserved — input signal to the processor. The NMI event is frequently 5 Hardware Error IVHW used as a power-down indicator to initiate an orderly shut- down of the system. 6 Core Timer IVTMR 7 General Interrupt 7 IVG7 • Exceptions – Events that occur synchronously to program flow (the exception is taken before the instruction is 8 General Interrupt 8 IVG8 allowed to complete). Conditions such as data alignment 9 General Interrupt 9 IVG9 violations and undefined instructions cause exceptions. 10 General Interrupt 10 IVG10 • Interrupts – Events that occur asynchronously to program 11 General Interrupt 11 IVG11 flow. They are caused by input pins, timers, and other 12 General Interrupt 12 IVG12 peripherals, as well as by an explicit software instruction. 13 General Interrupt 13 IVG13 Each event type has an associated register to hold the return address and an associated return-from-event instruction. When 14 General Interrupt 14 IVG14 an event is triggered, the state of the processors is saved on the 15 General Interrupt 15 IVG15 supervisor stack. The ADSP-BF538/ADSP-BF538F processors’ event controllers
Table 3. System and Core Event Mapping
consist of two stages, the core event controller (CEC) and the
Core
system interrupt controller (SIC). The core event controller
Event Source Event Name
works with the system interrupt controller to prioritize and con- trol all system events. Conceptually, interrupts from the PLL Wake-Up Interrupt IVG7 peripherals enter into the SIC and are then routed directly into DMA Controller 0 Error IVG7 the general-purpose interrupts of the CEC. DMA Controller 1 Error IVG7
Core Event Controller (CEC)
PPI Error Interrupt IVG7 The CEC supports nine general-purpose interrupts (IVG15–7), SPORT0 Error Interrupt IVG7 in addition to the dedicated interrupt and exception events. Of SPORT1 Error Interrupt IVG7 these general-purpose interrupts, the two lowest priority inter- SPORT2 Error Interrupt IVG7 rupts (IVG15–14) are recommended to be reserved for software SPORT3 Error Interrupt IVG7 interrupt handlers, leaving seven prioritized interrupt inputs to support the peripherals of the processor. SPI0 Error Interrupt IVG7 Table 2 describes the inputs to the CEC, identifies their names SPI1 Error Interrupt IVG7 in the event vector table (EVT), and lists their priorities. SPI2 Error Interrupt IVG7
